12.5.2.2 Removing the Multibay box
Ê Remove all cables from the slimline ODD.
Ê Remove the LSD cable from system board connector SMB 1.
Ê Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 91.

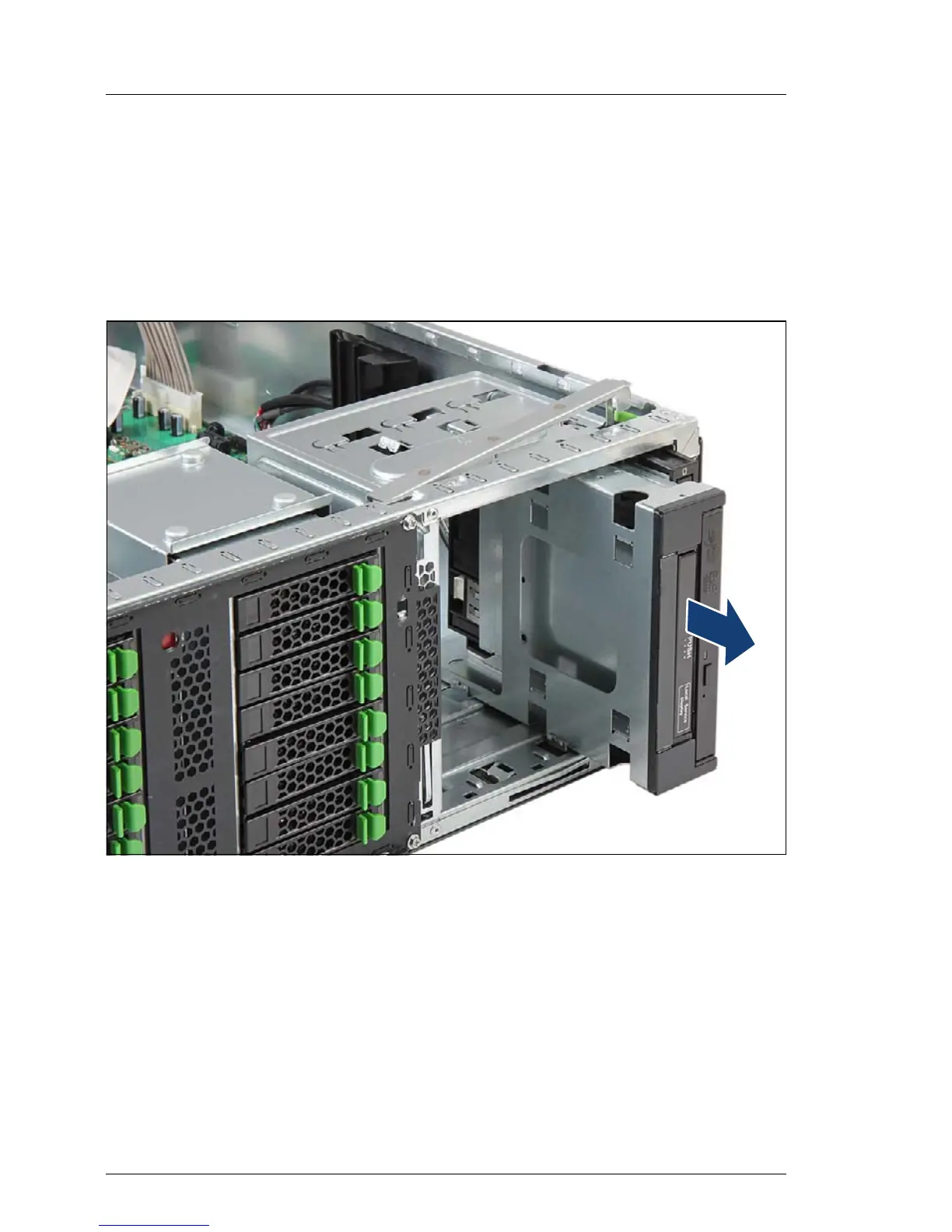

Figure 430: Removing the Multibay box
Ê Carefully pull the Multibay box out of its installation bay.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
