12.5.1.3 Installing the LSD module into the Multibay box

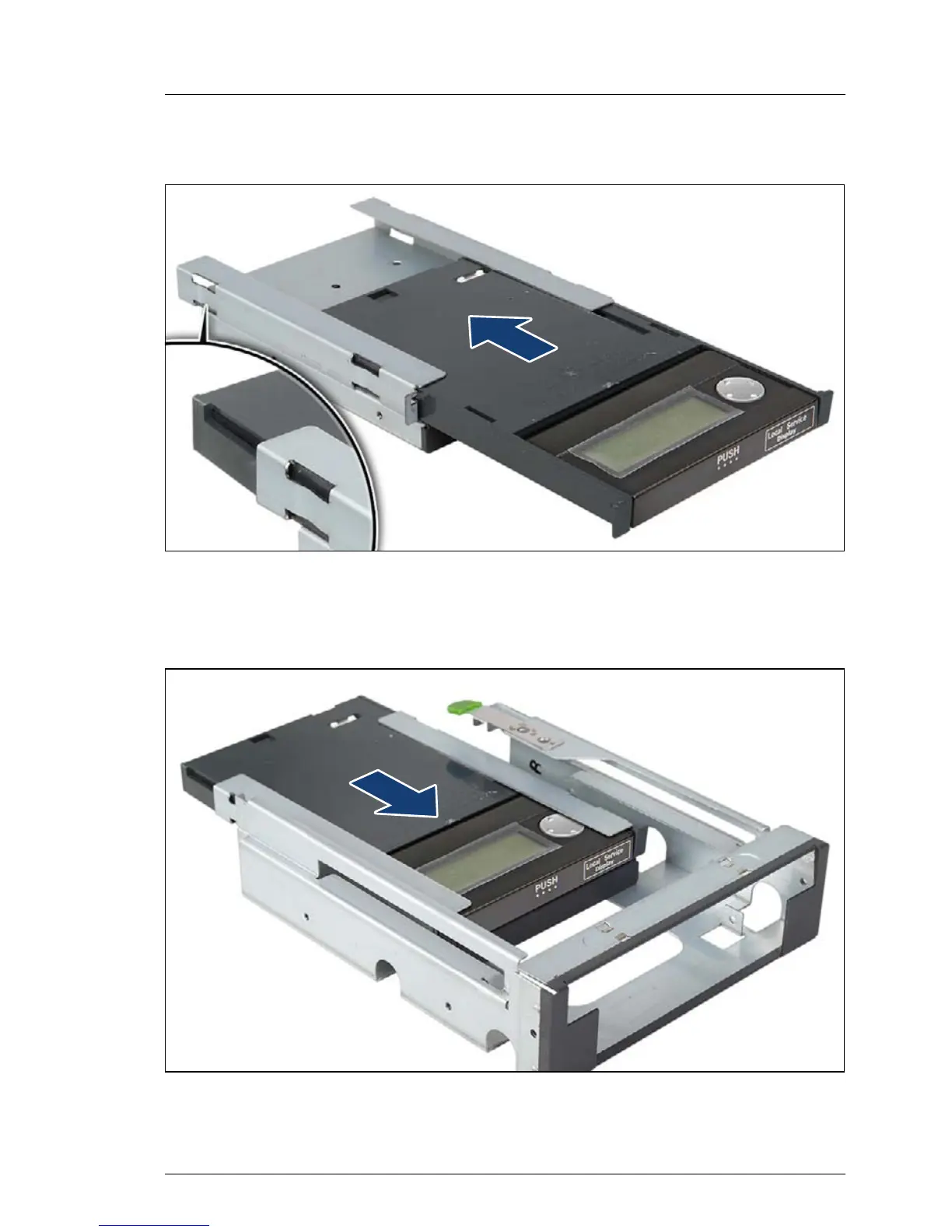

Figure 424: Inserting the LSD module into the 3.5-inch installation frame
Ê From the front, slide the LSD module into the 3.5-inch installation frame
(C26361-K644-B437-*-Y155) until the locking latch (see circle) engages.
Figure 425: Installing the 3.5-inch installation frame in the Multibay box (A)
Ê From the rear, slide the 3.5-inch installation frame into the Multibay box.
