TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 633
Front panel and external connectors
13.3.1.2 Removing the front panel module
Ê "Removing front panel cables from the system board" on page 603
Ê "Removing the front panel module" on page 605
13.3.1.3 Preparing the front panel module
Ê "Removing the front panel module cover" on page 608

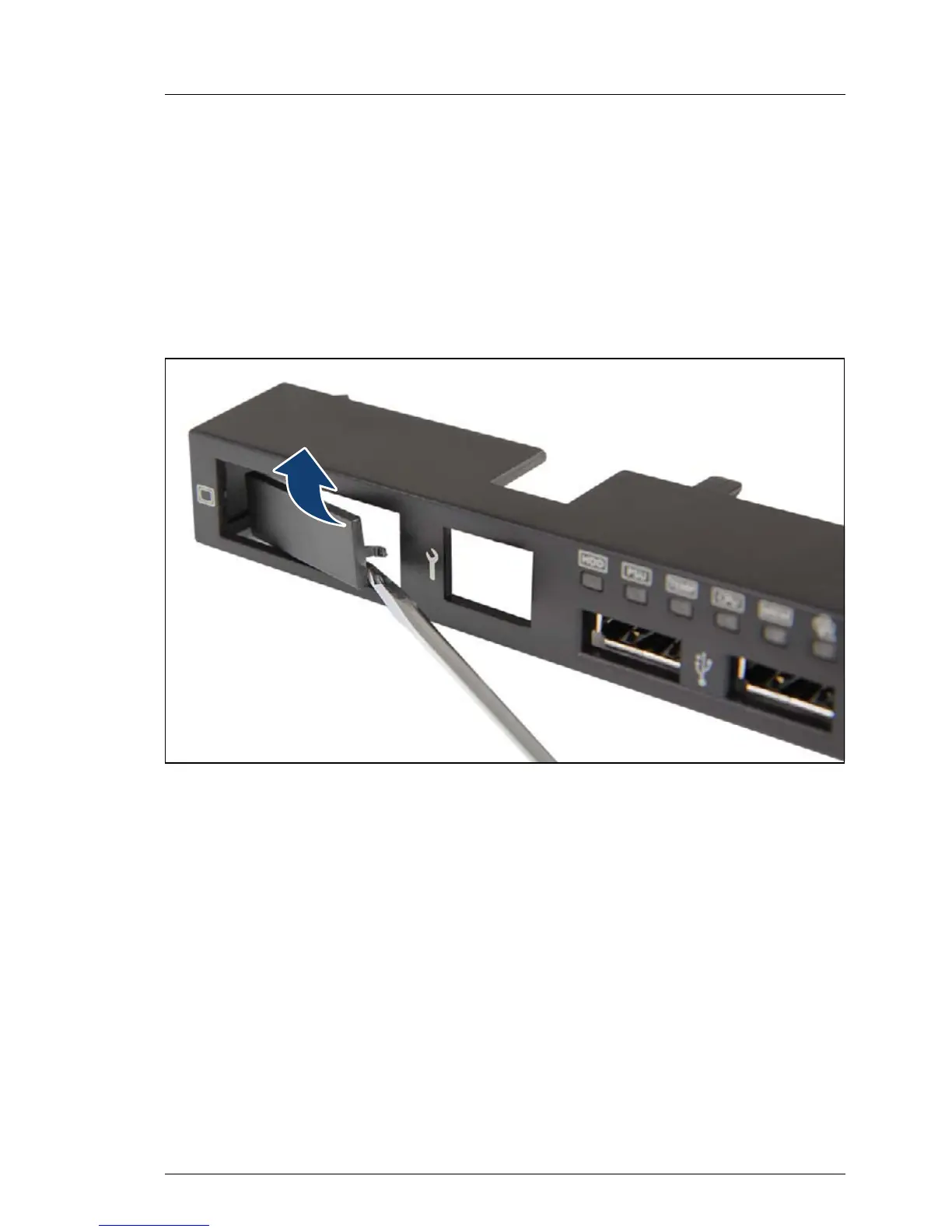

Figure 496: Breaking out the front VGA cover plate
Ê Break out the front VGA cover plate on the front panel cover.
I Please note that once removed, the front VGA cover plate cannot be
refitted.
