16.2.19 SAS 3.0 / 2.0 cabling with 24x 2.5-inch HDDs /
SSDs, two SAS controllers, SAS expander board

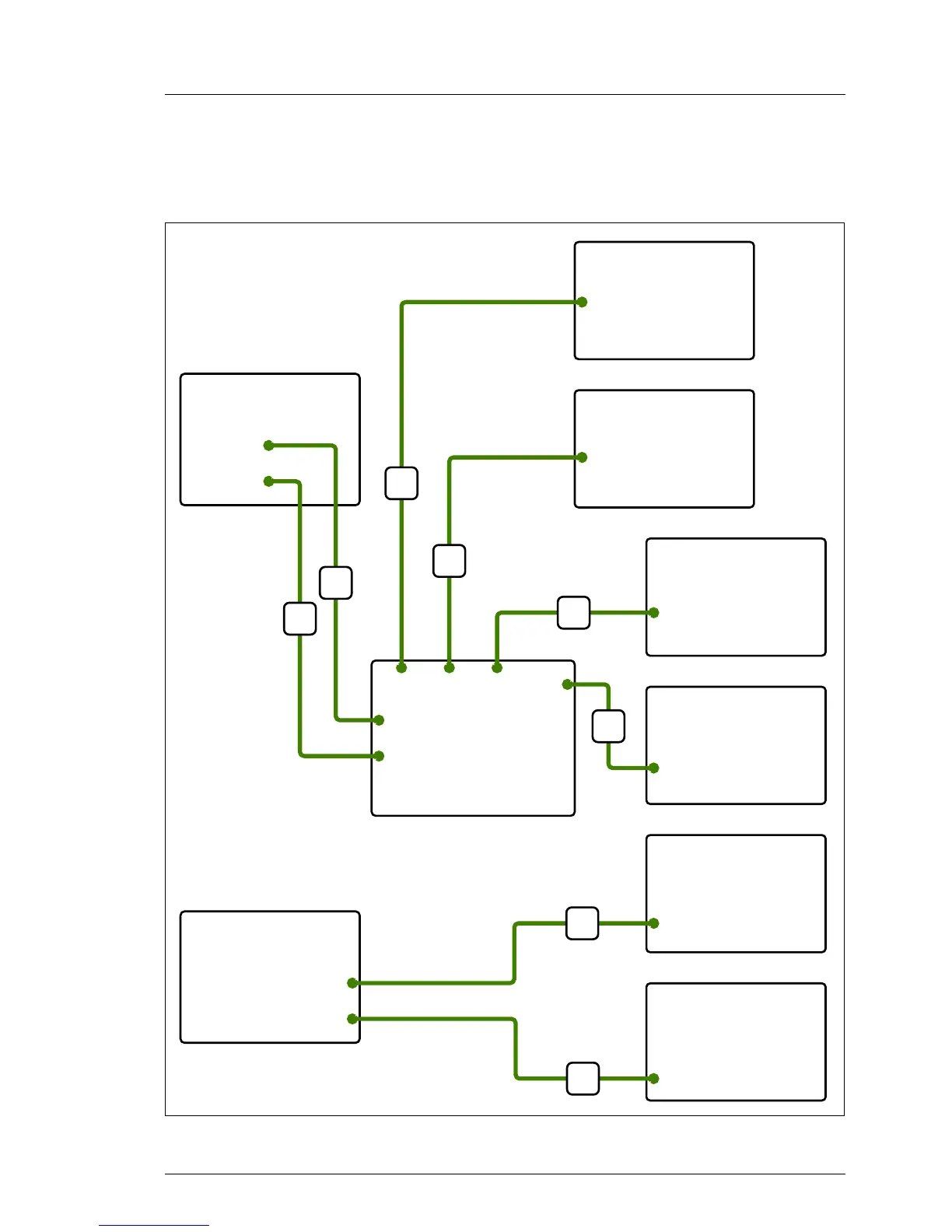

Figure 595: SAS cabling: 24x 2.5" HDDs, 2x SAS 2.0 / 3.0 controllers, SAS expander board
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
SAS 3.0 Controller 1
(PCI Slot 10)
MLC 1
MLC 2
SAS 2.0 Controller 2
(PCI Slot 3)
MLC 1
MLC 2
4x 2.5-inch HDD
SAS 3.0 Backplane 2
X5
4x 2.5-inch HDD
SAS 3.0 Backplane 1
X5
4x 2.5-inch HDD
SAS 2.0 Backplane 4
X1
4x 2.5-inch HDD
SAS 2.0 Backplane 3
X1
27
27
15
4x 2.5-inch HDD
SAS 2.0 Backplane 6
X1
4x 2.5-inch HDD
SAS 2.0 Backplane 5
X1
16
16
18
18
15
