12.7.1.2 Installing the slimline ODD into the HDD extension box

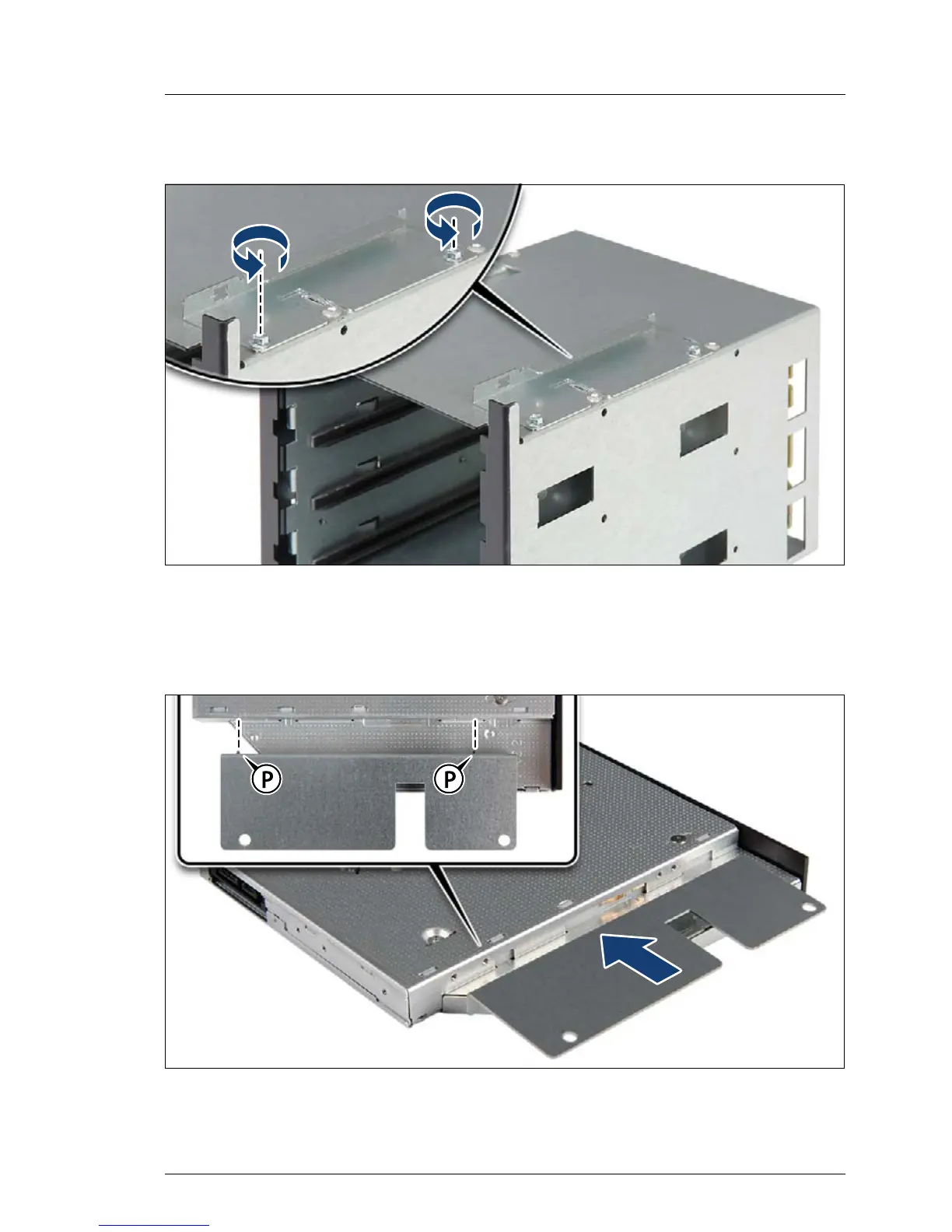

Figure 454: Removing the slimline ODD mounting bracket
Ê Remove two screws from the slimline ODD mounting bracket.
Ê Remove the slimline ODD mounting bracket.
Figure 455: Installing the slimline ODD mounting bracket on the ODD (A)
Ê Turn the slimline ODD upside down.
