Ê Fit the mounting bracket on the slimline ODD as shown.
Ê Ensure that the two pins (P) on the mounting bracket properly engage with
the screw holes in the drive.

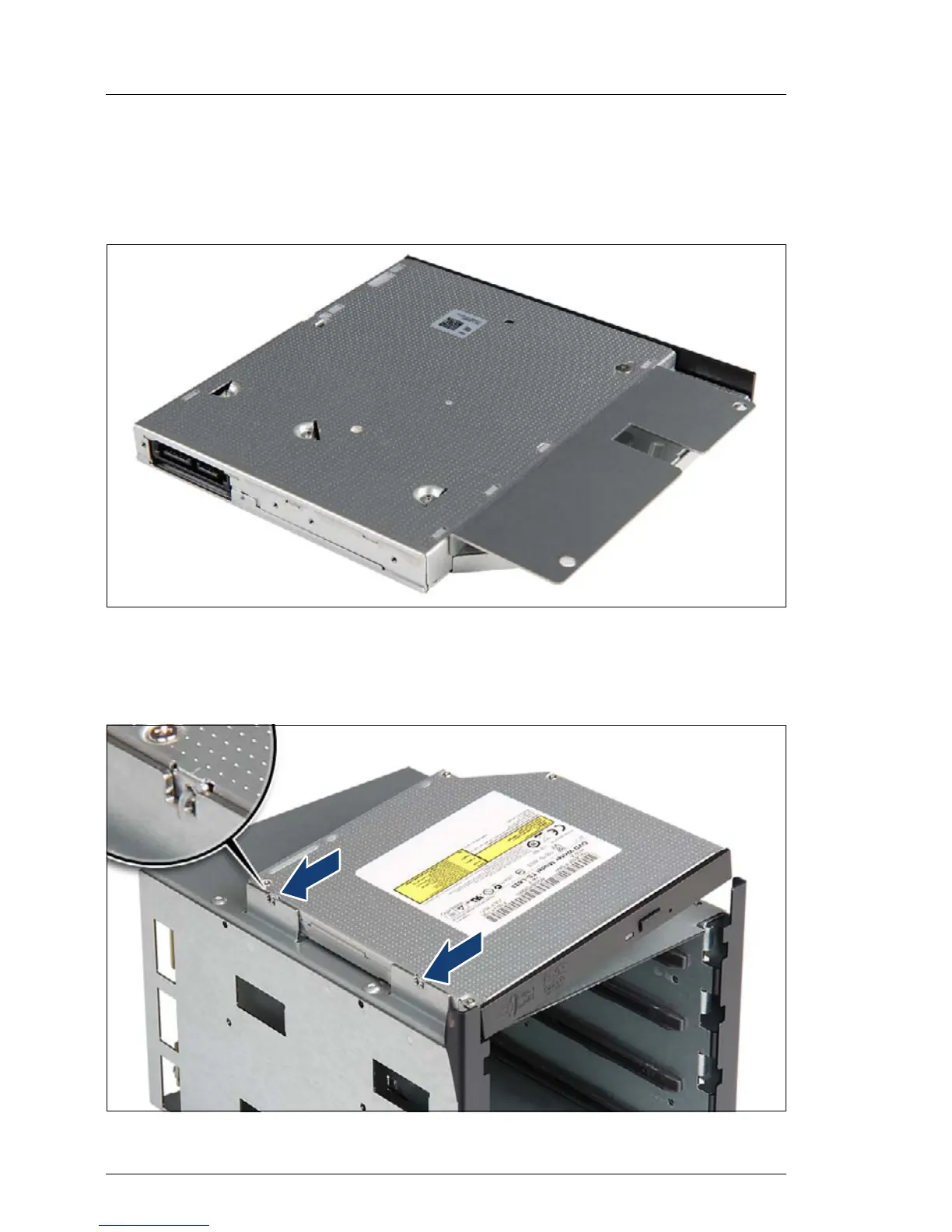

Figure 456: Installing the slimline ODD mounting bracket on the ODD (B)
Ê Ensure that the slimline ODD mounting bracket is properly seated on the
drive as shown.
Figure 457: Installing the slimline ODD on the HDD extension box (A)
