Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 719
Converting a tower server to a rack server
15.4 Converting the accessible drive cage

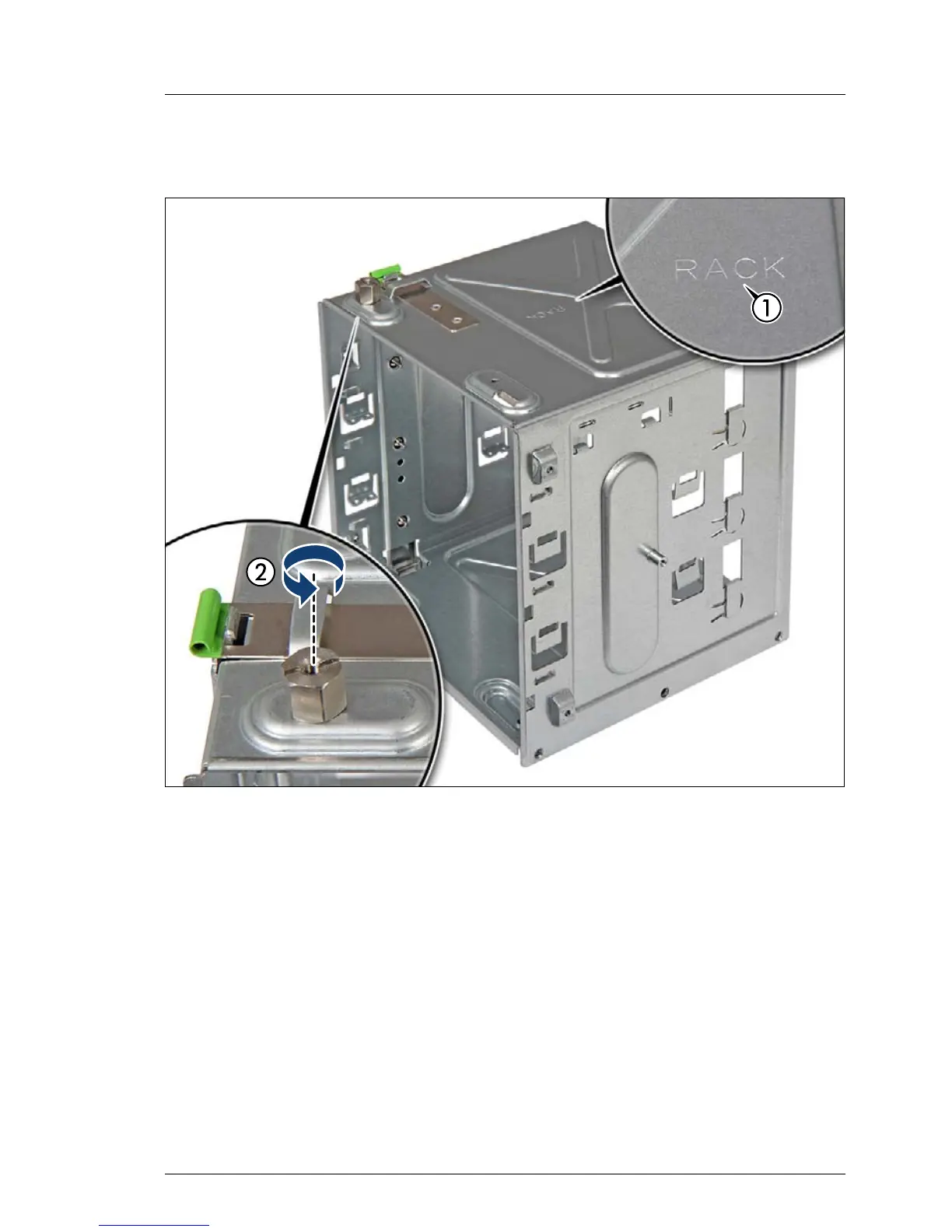

Figure 562: Converting the accessible drive cage (A)
Ê Turn the accessible drive cover with its "RACK" stamping facing up (1, see
close-up).
Ê Remove the threaded bolt from the upper edge of the accessible drive cage
(2).
