Fujitsu PRIMERGY RX350 S8

172 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Power supply
6.3.3 Installing a PSU dummy module

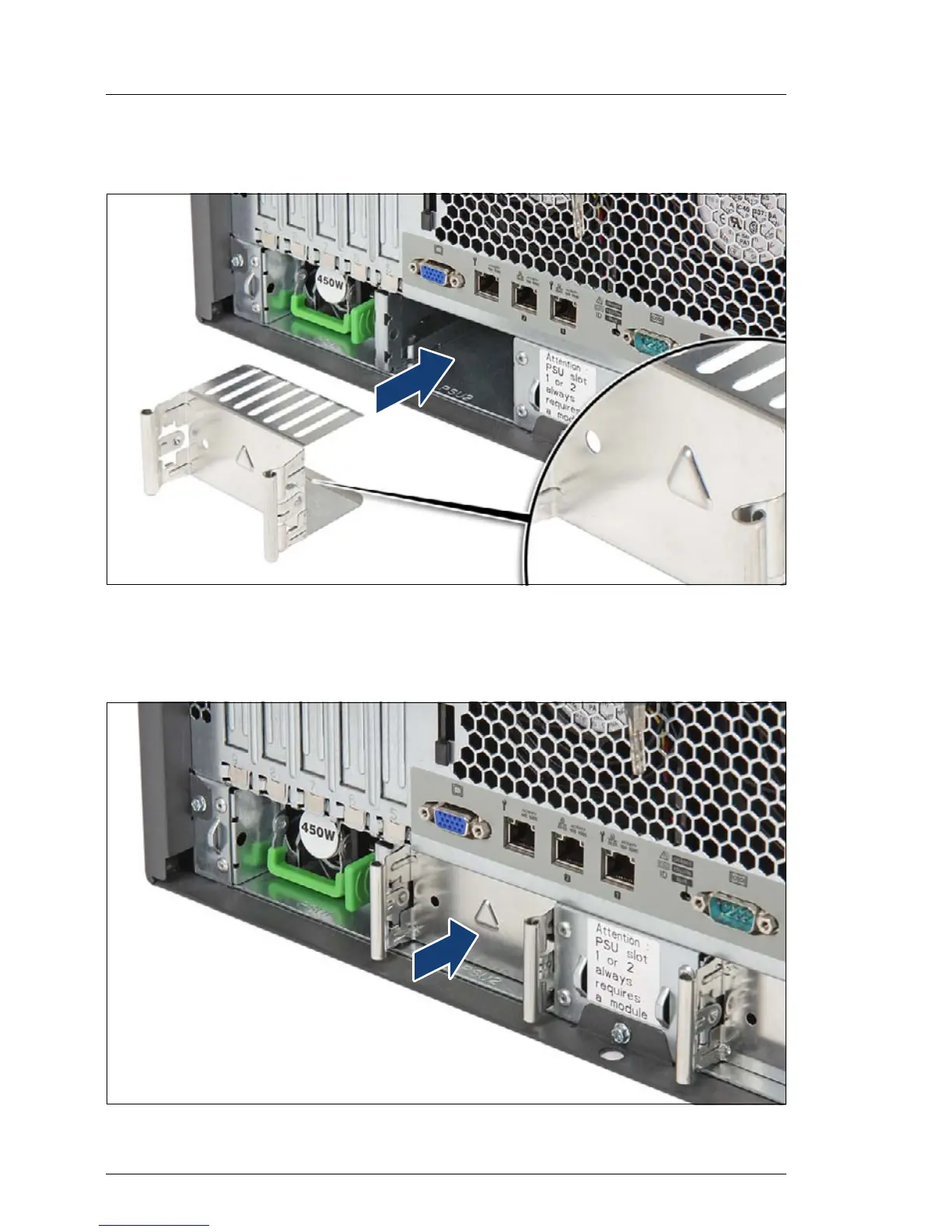

Figure 82: Installing a PSU dummy module (A)
Ê Insert the PSU dummy module into the empty PSU slot with the impressed
arrow symbol facing up (see close-up).
Figure 83: Installing a PSU dummy module
