Ê Hold the defective system board by the memory module ejectors and a PCI
slot and at a slight angle lift it out of the chassis.
Ê If applicable, remove the TPM board as described in section "Removing the
TPM board" on page 668.
14.6.3 Installing the system board
14.6.3.1 Mounting the system board

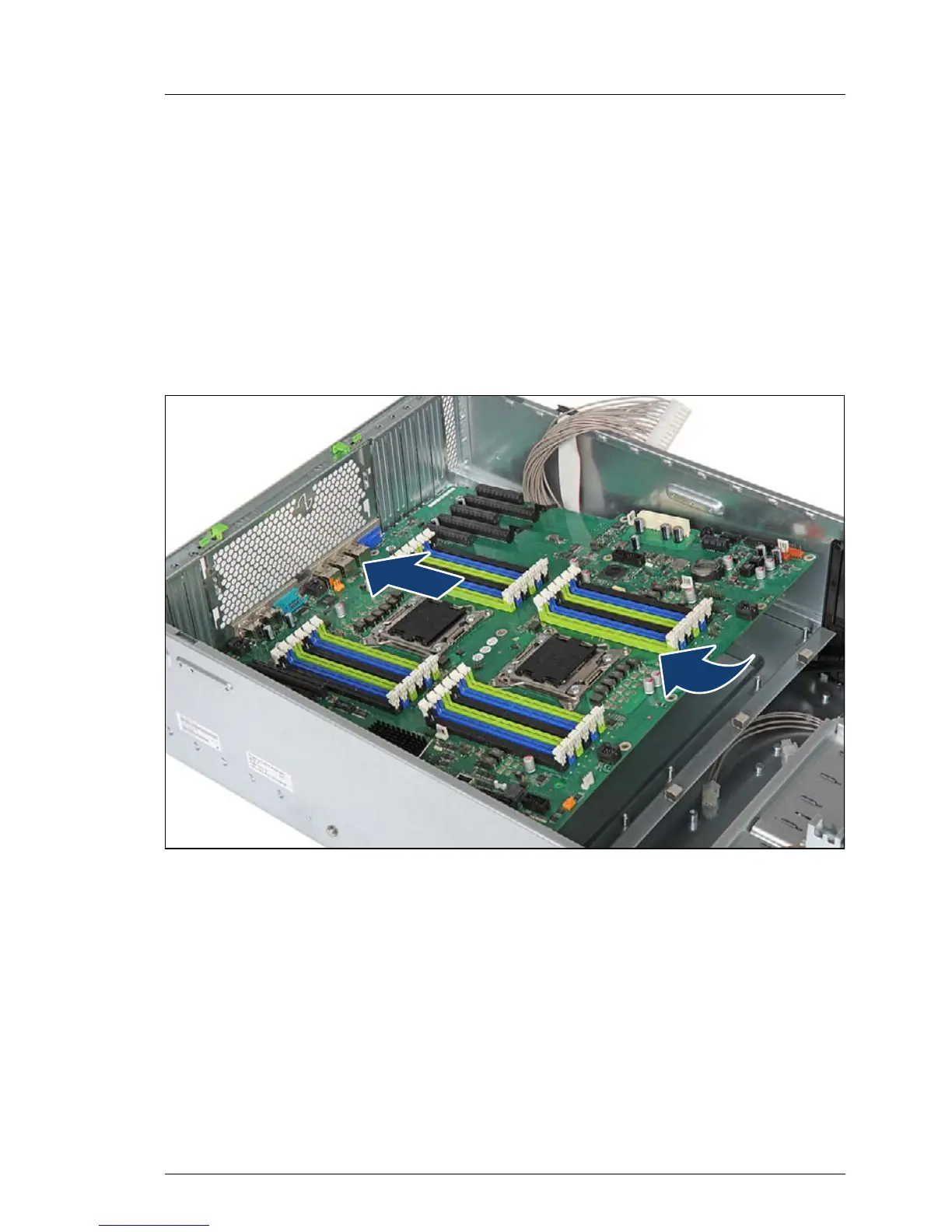

Figure 537: Installing the system board (A)
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
