692 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
System board and components

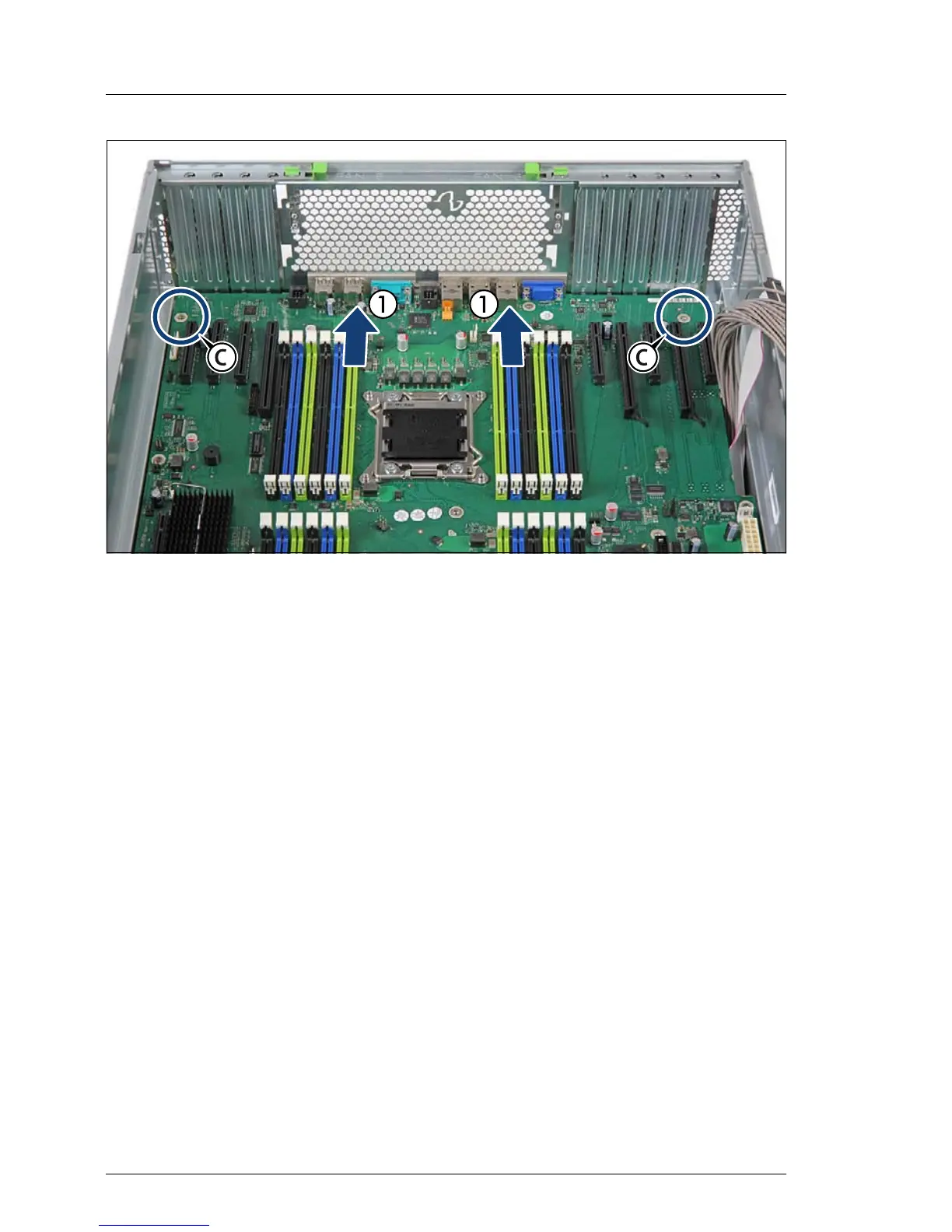

Figure 538: Installing the system board (B)
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (1).
Ê Lower the system board onto the centering bolts (C).
Ensure that the system board is properly seated on both centering bolts.
