7.3.4 10x 3.5-inch HDDs (3 SAS backplanes)
7.3.4.1 Mounting order for 3.5-inch HDDs

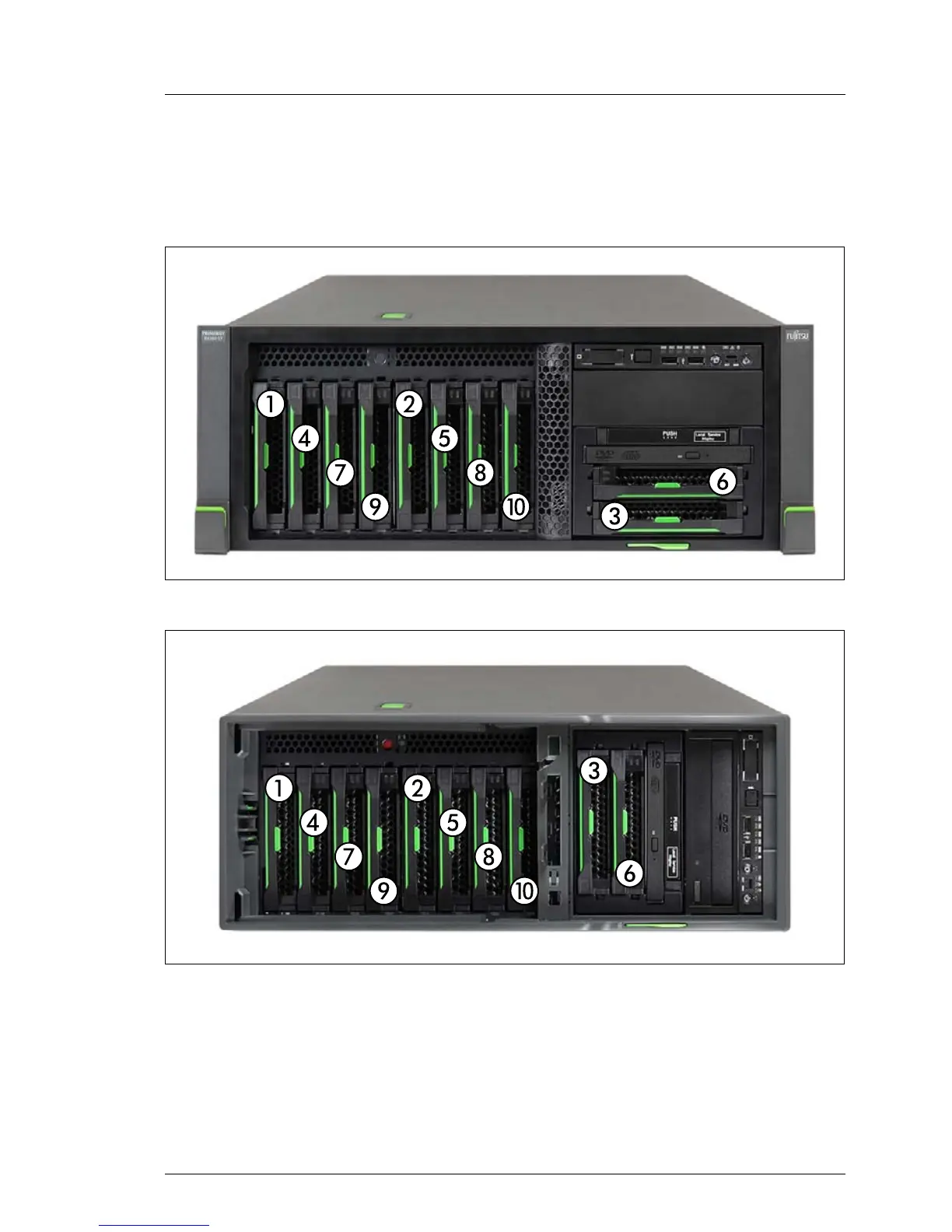

Figure 152: Mounting order: up to 10x 3.5-inch HDDs (Rack)
Figure 153: Mounting order: up to 10x 3.5-inch HDDs (Tower)
7.3.4.2 10x 3.5-inch HDD SAS backplane cabling
I Before connecting SAS cables to the controller, bend the cables as
needed in order to reduce strain on the controller. Bend the SAS cables
as close to their shrink tubes as possible.
