9.6.2.2 Preparing the BBU

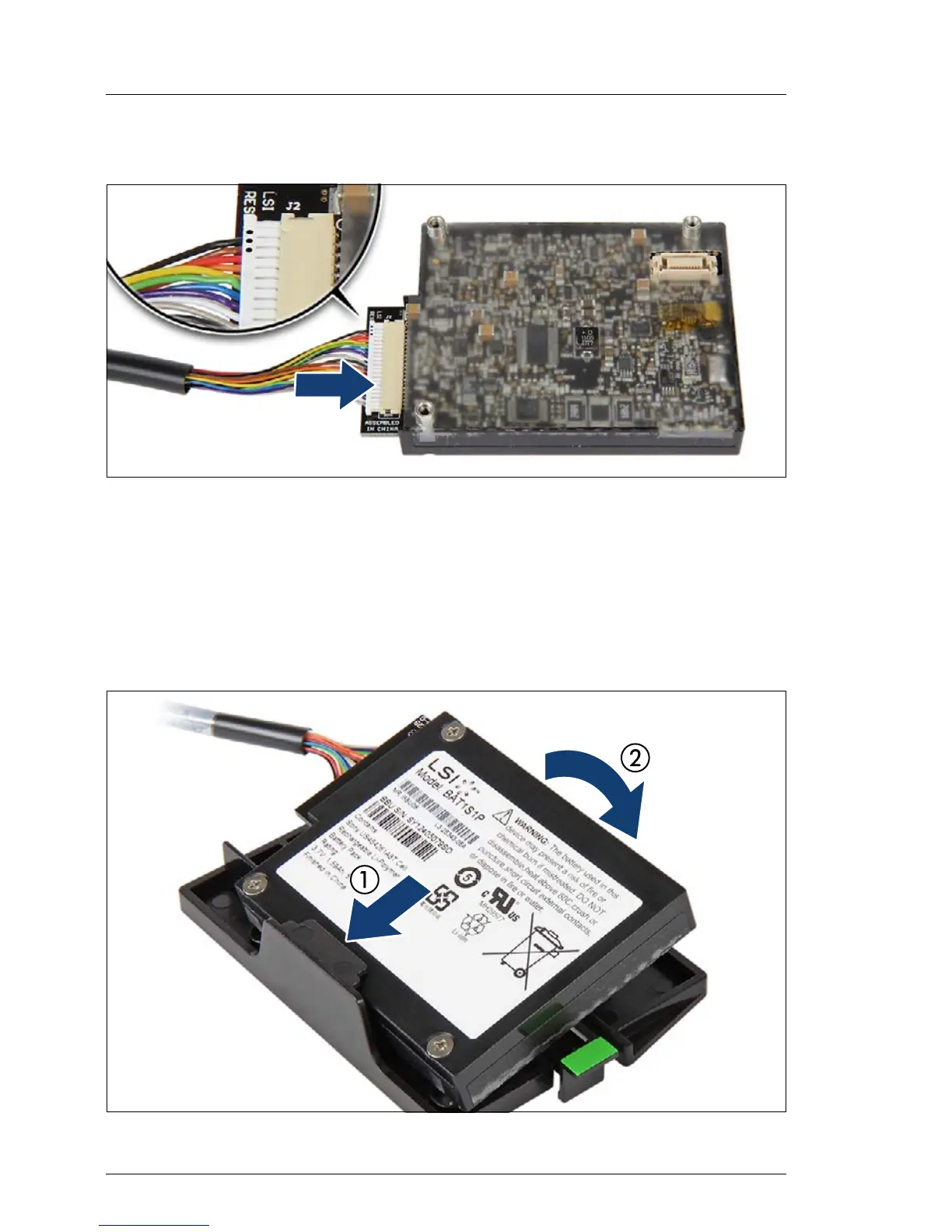

Figure 328: Connecting the BBU cable
Ê Connect the BBU cable (T26139-Y3987-V2) to the BBU board
(Lx-25343-xxx, BBU08) as shown.
V CAUTION!
Make sure that the connector side with the three dots points towards you
(see close-up). Otherwise, short-circuits may result!
Figure 329: Installing the BBU in the BBU holder
