750 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2.13 SAS 2.0 cabling with 8x 2.5-inch SAS 2.0
HDDs / SSDs and two SAS 3.0 backplanes

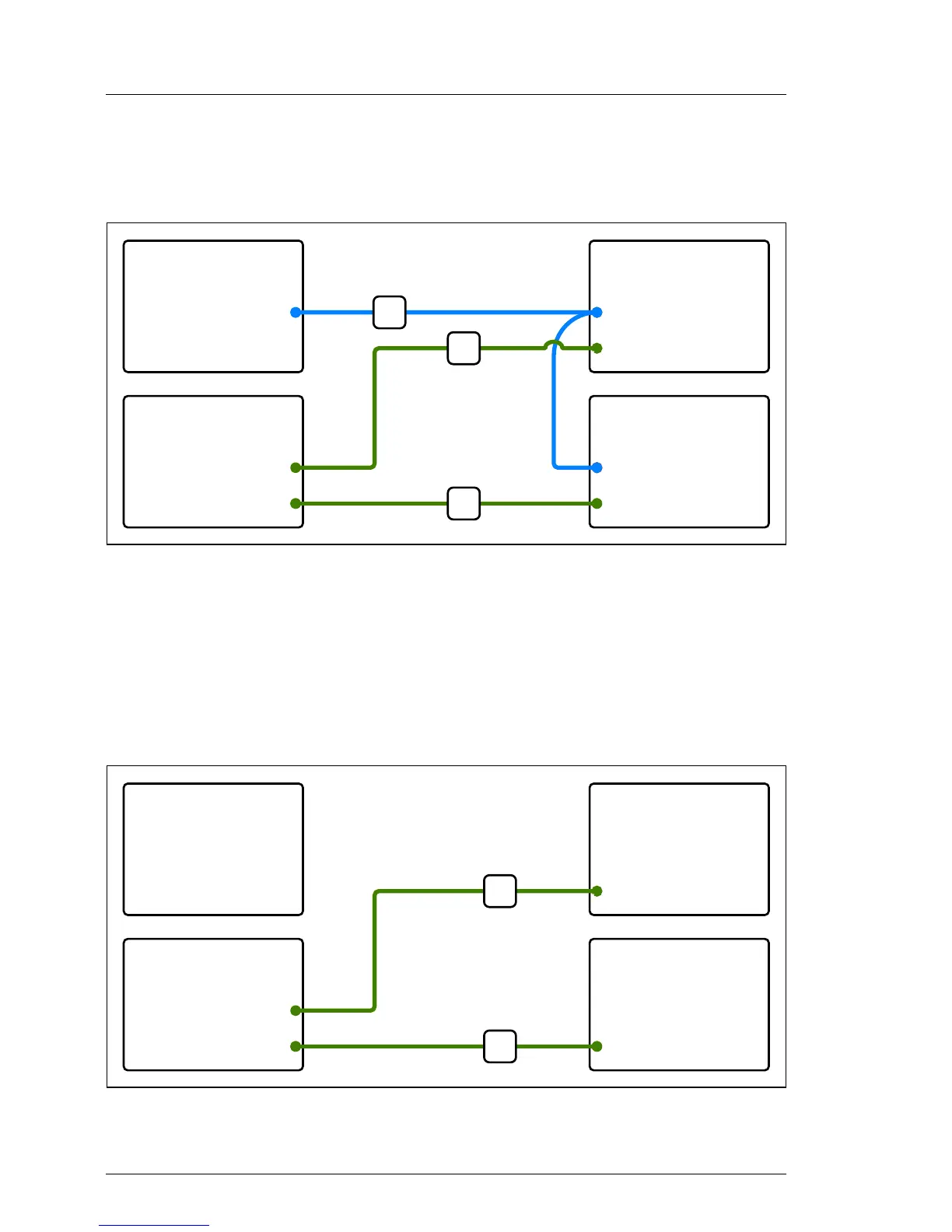

Figure 589: SAS 2.0 cabling with two SAS 3.0 backplanes
I This cabling configuration includes Out-of-Band monitoring with SAS 2.0
RAID controllers D2616 and D2607.
16.2.14 SAS 3.0 cabling with 8x 2.5-inch SAS 3.0 SSDs and
two SAS 3.0 backplanes
Figure 590: SAS 3.0 cabling with two SAS 3.0 backplanes
4x 2.5-inch HDD
SAS 3.0 Backplane 1
X5
X11
4x 2.5-inch HDD
SAS 3.0 Backplane 2
X5
X11
SMB4
SAS 2.0 Controller 1
(PCI Slot 10)
MLC 1
MLC 2
28
28
System Board D2949
29
4x 2.5-inch HDD
SAS 3.0 Backplane 1
X5
X11
4x 2.5-inch HDD
SAS 3.0 Backplane 2
X5
X11
SAS 3.0 Controller 1
(PCI Slot 10)
MLC 1
MLC 2
27
27
System Board D2949
