12.5.2.3 Removing the slimline ODD from the Multibay box

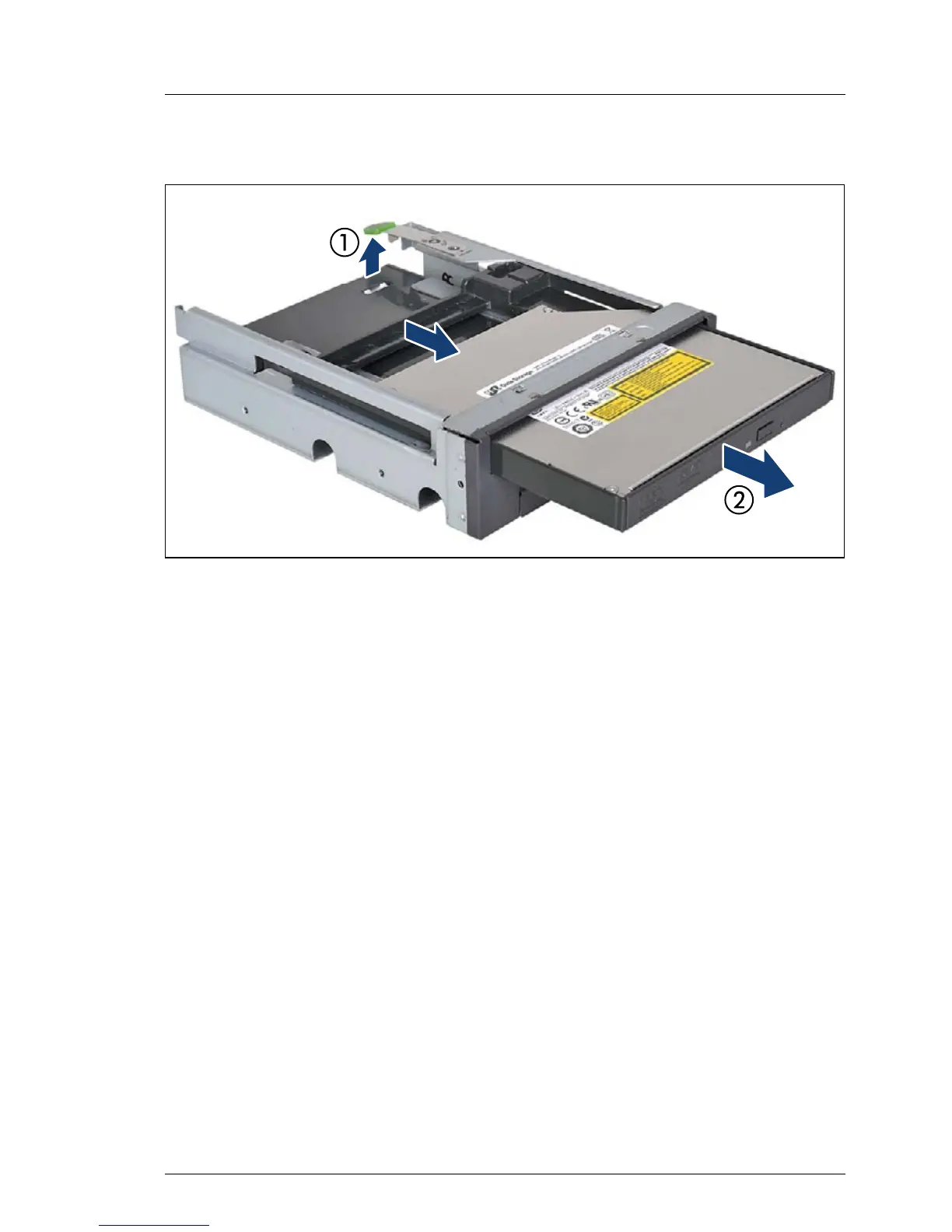

Figure 431: Removing the slimline ODD from the Multibay box
Ê Press up on the locking tab to disengage the slimline ODD module (1).
Ê From inside the Multibay box, press out on the slimline ODD module and pull
it out of its bay (2).
