Figure 213: Installing accessible drive covers

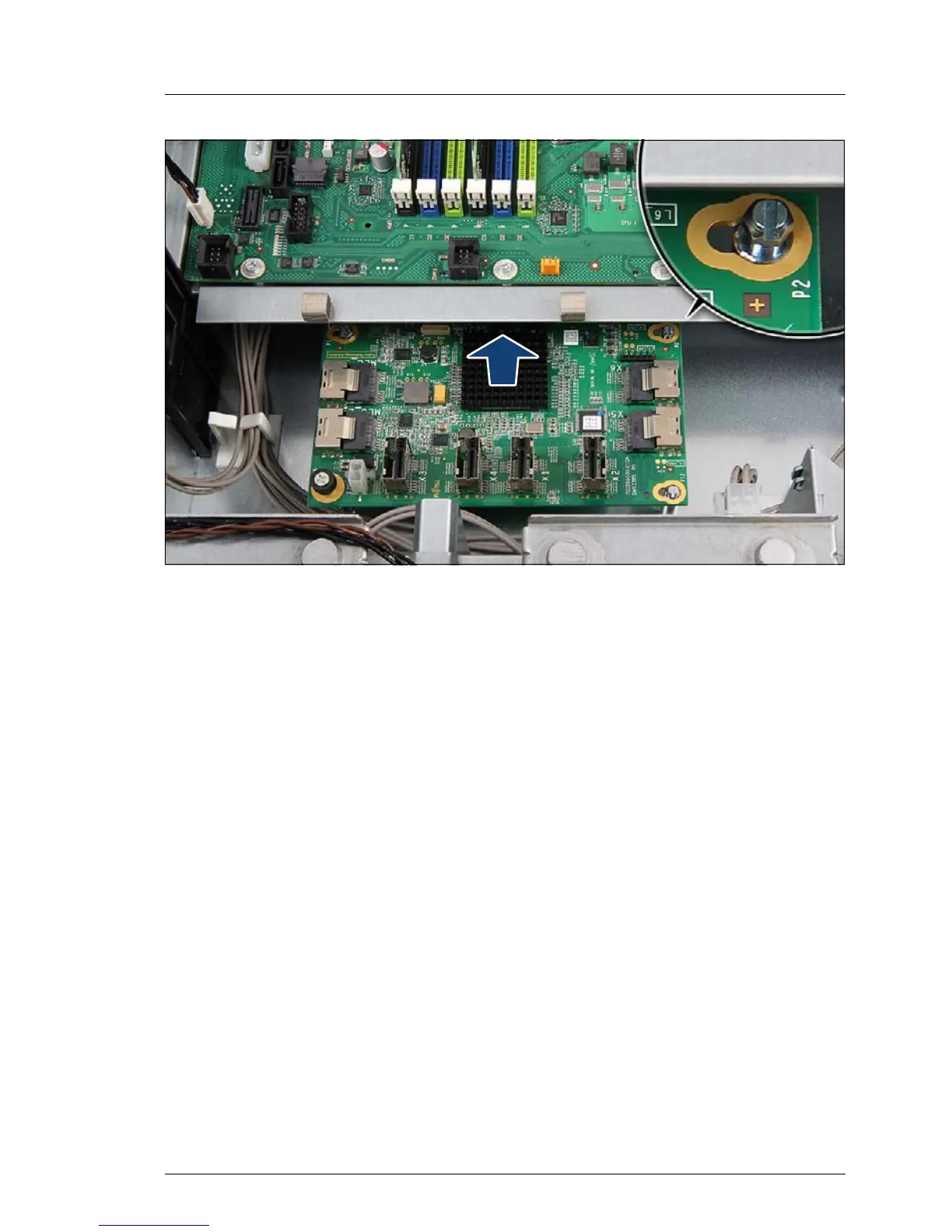

Ê Remove the SAS expander board from the chassis
Ê Change SAS cabling according to the new server configuration as described
in sections "2.5-inch HDD / SSD configurations" on page 185 and "3.5-inch
HDD configurations" on page 241.
7.5.2.3 Concluding steps
Ê "Installing the system fan holder" on page 331
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
Ê If BitLocker functionality is used and has been disabled before starting the
maintenance task: "Resuming BitLocker functionality" on page 152
