Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 611
Front panel and external connectors
13.1.4.2 Installing the front panel module

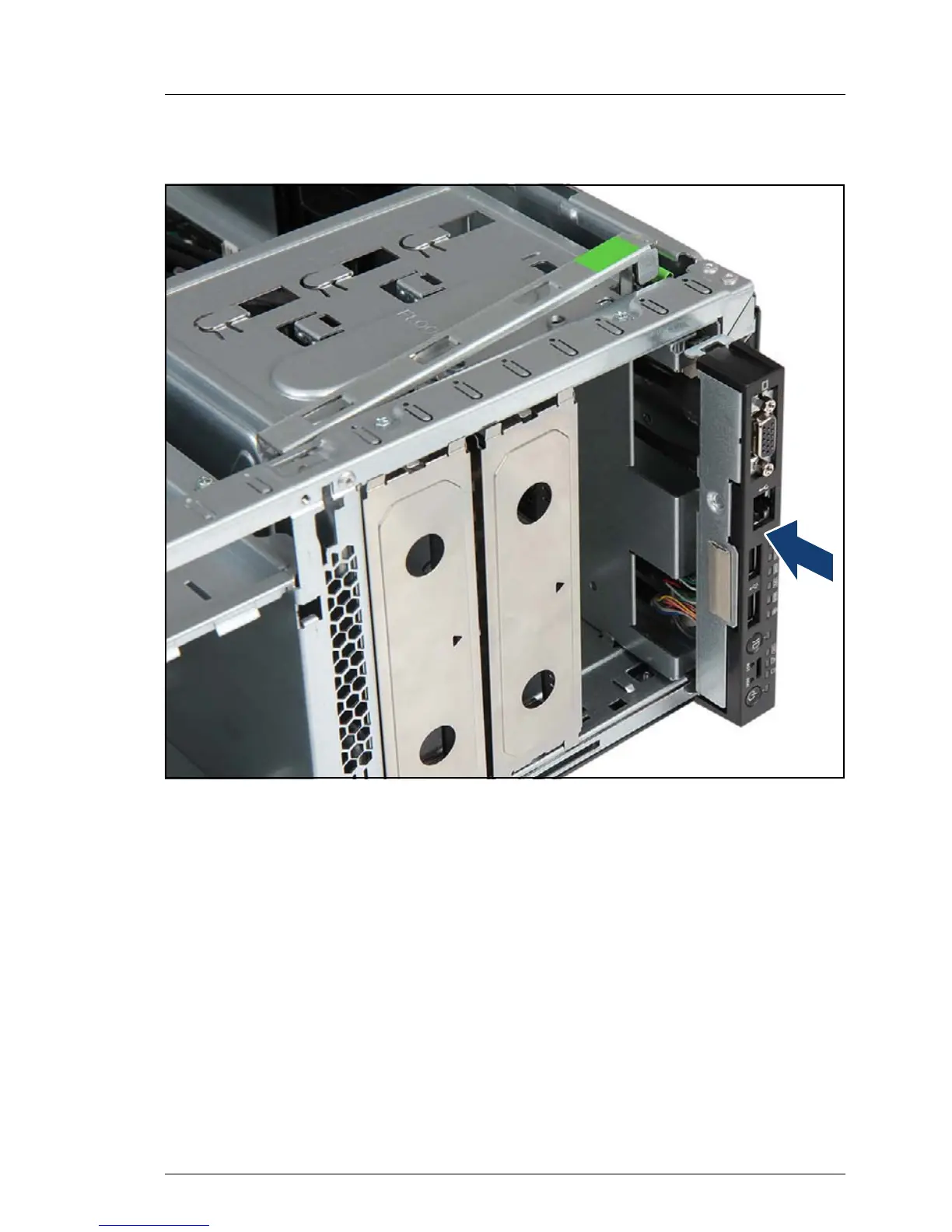

Figure 477: Installing the front panel module
Ê Insert the front panel module into its installation bay and carefully push in
until the front screw hole on the front panel frame lines up with the centering
pin on the locking bar.
