Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 431
Expansion cards and backup units
9.5.3.2 Removing the SAS RAID controller

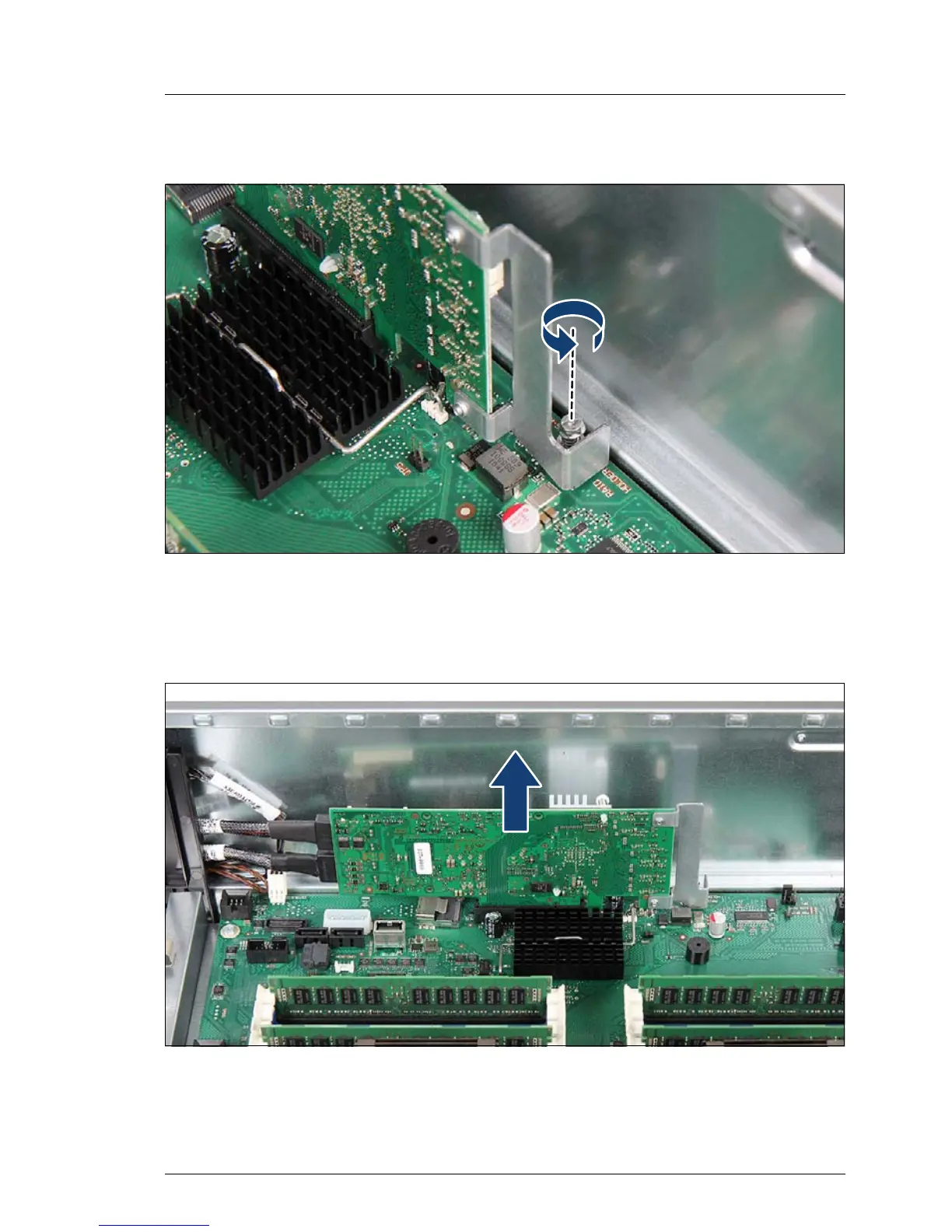

Figure 325: Removing the SAS RAID controller (A)
Ê Disconnect the SAS cables from the SAS RAID controller.
Ê Loosen the captive screw on the RAID card holder.
Figure 326: Removing the SAS RAID controller (B)
Ê Carefully pull up on the SAS RAID controller in a vertical motion and remove
it from its slot.
