Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 267
Hard disk drives / solid state drives
7.3.9.3 Removing the defective 3.5-inch HDD SAS backplane

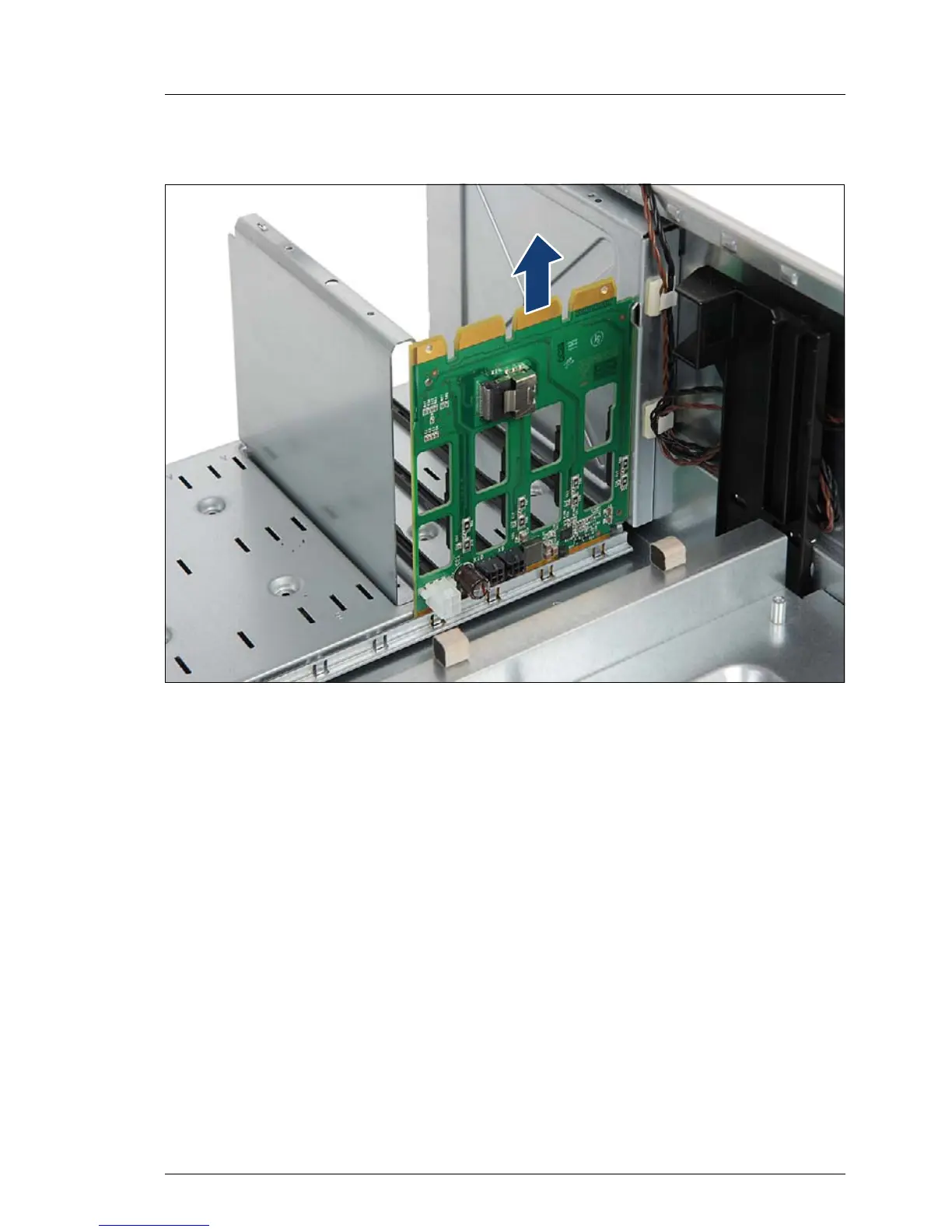

Figure 171: Removing the defective 3.5-inch HDD SAS backplane
Ê Pull up on the SAS backplane and remove it from the HDD bay in a vertical
motion.
