7.3.2.2 4x 3.5-inch HDD SAS backplane cabling
I Before connecting SAS cables to the controller, bend the cables as
needed in order to reduce strain on the controller. Bend the SAS cables
as close to their shrink tubes as possible.
SAS cabling
Power cabling
7.3.2.3 HDD naming scheme

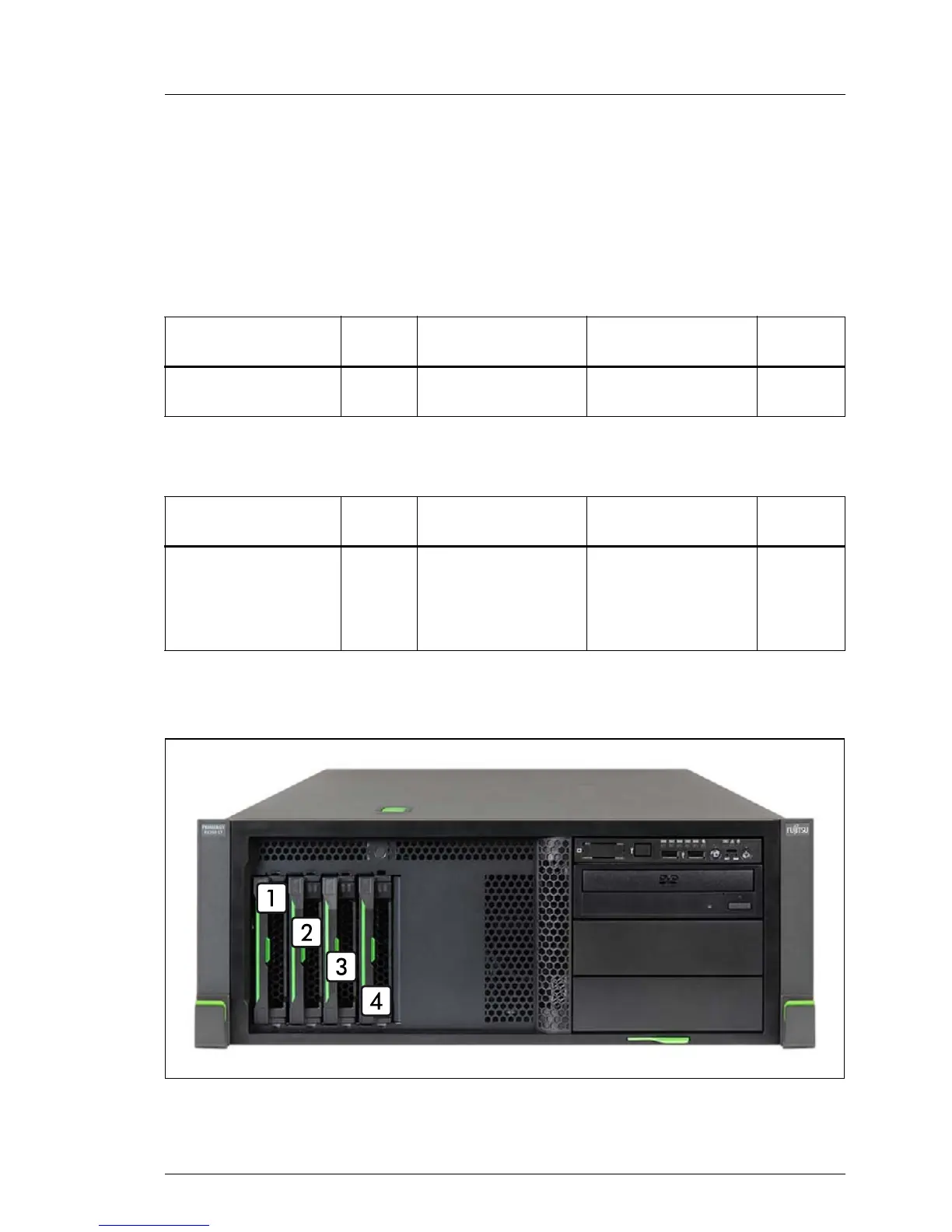

Figure 149: Naming scheme: 4x 3.5-inch HDDs (1 SAS backplane)
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
SAS cable
Y3963-V151/V101
16
Connector MLC 1 on
SAS controller 1
SAS backplane 1
connector X1
16.2.7
Cable
(T26139-)
Cabling
list no.
from to
Cabling
plan
HDD power cable
Y3952-V601
1
Power backplane
connector X21
SAS backplane 1
connector X7
(HDDs 1, 2, 3, 4)
Cable connector P1
16.2.3
