16.2.7 SAS cabling with 8x 3.5-inch HDDs

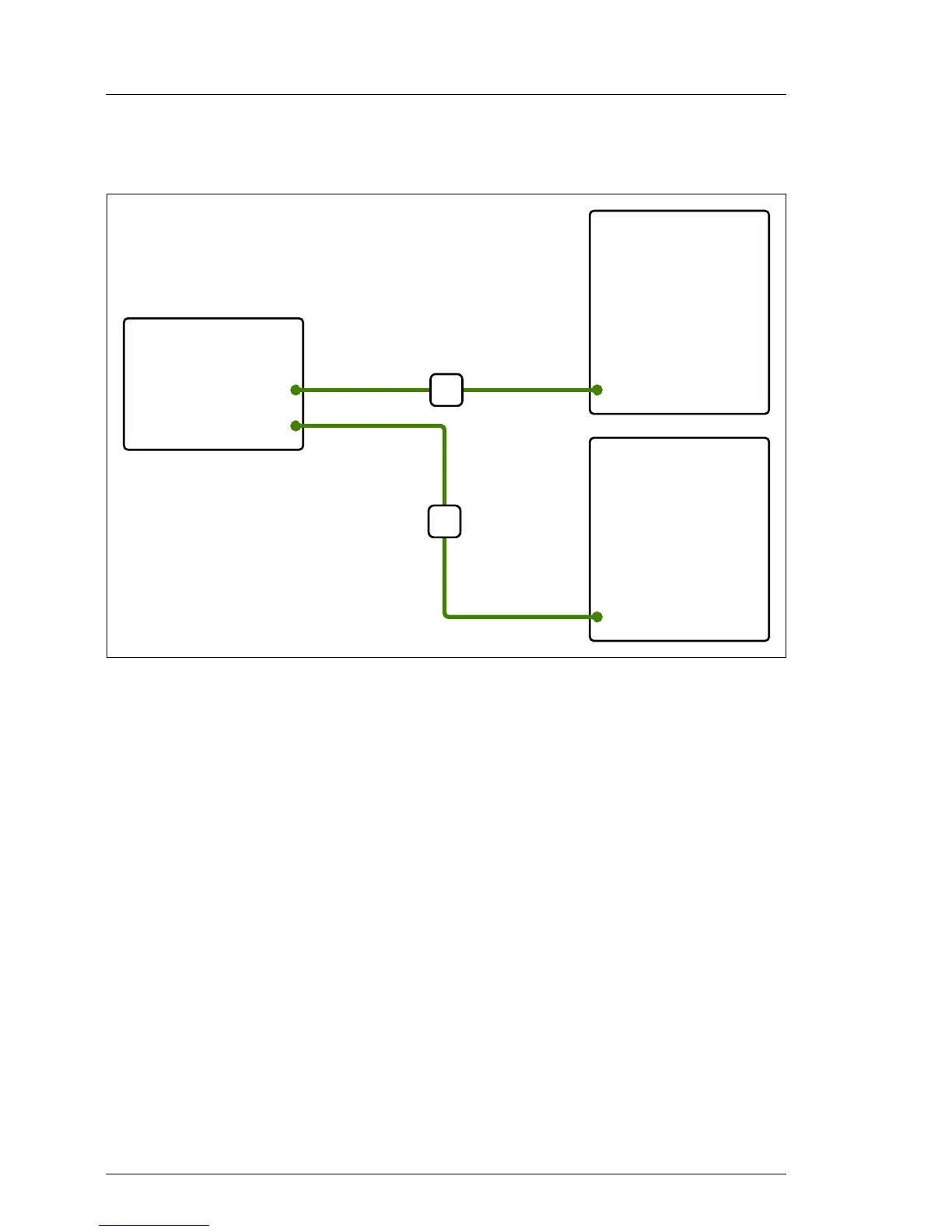

Figure 583: SAS cabling: 8x 3.5" HDDs
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
4x 3.5-inch HDD
Backplane 1
X9
X10
X7
4x 3.5-inch HDD
Backplane 2
X9
X10
X7
X1
X1
