Fujitsu PRIMERGY RX350 S8

374 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Expansion cards and backup units
9.3.2.2 Removing the Modular LAN controller

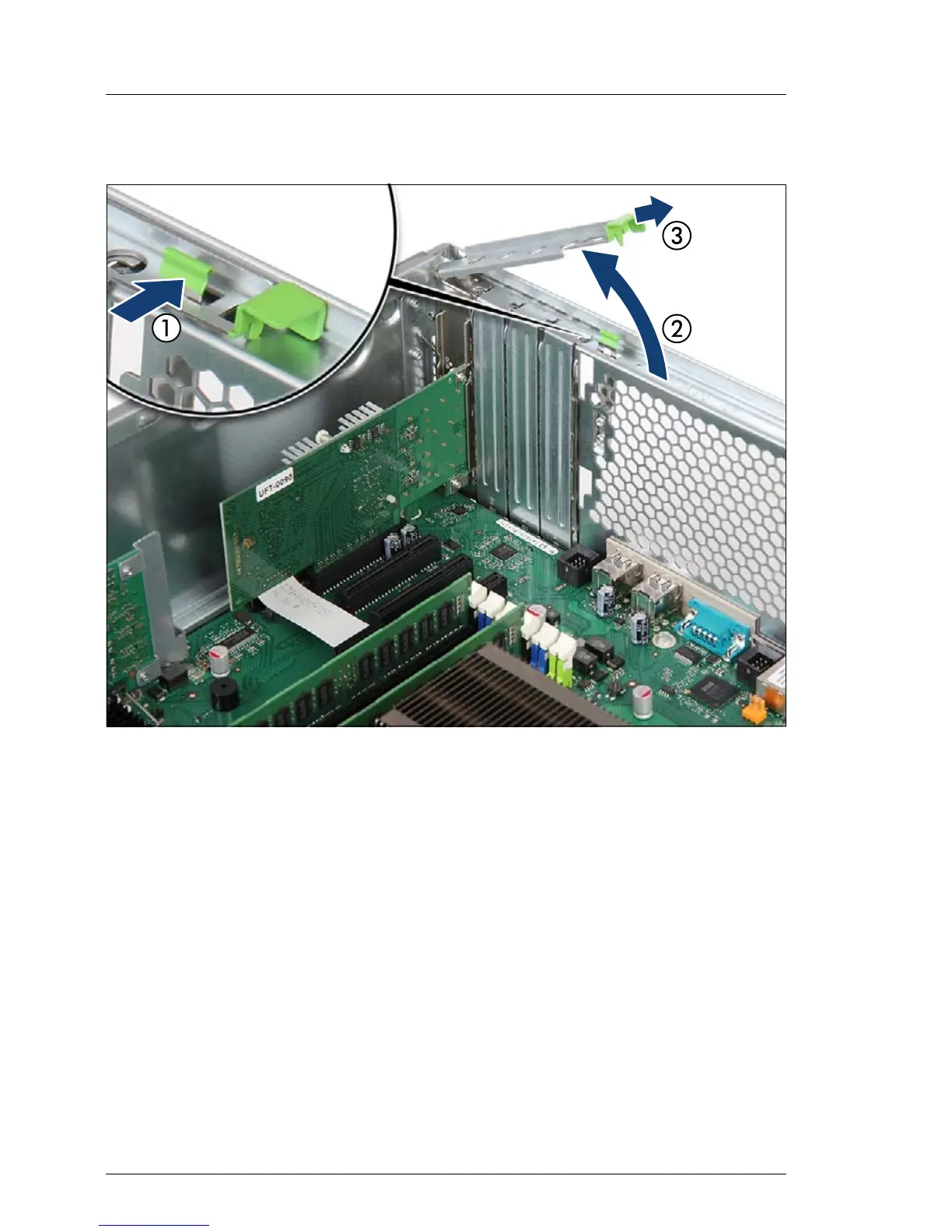

Figure 258: Detaching the Modular LAN controller
Ê If applicable, remove SFP+ transceiver modules from the Modular LAN
controller.
Ê Press out on the locking latch to disengage the PCI slot bracket locking bar
(1, see close-up).
Ê Fold up (2) and remove (3) the PCI slot bracket locking bar.
