4.13.1.2 Securing a power cord in the PSU cable bracket

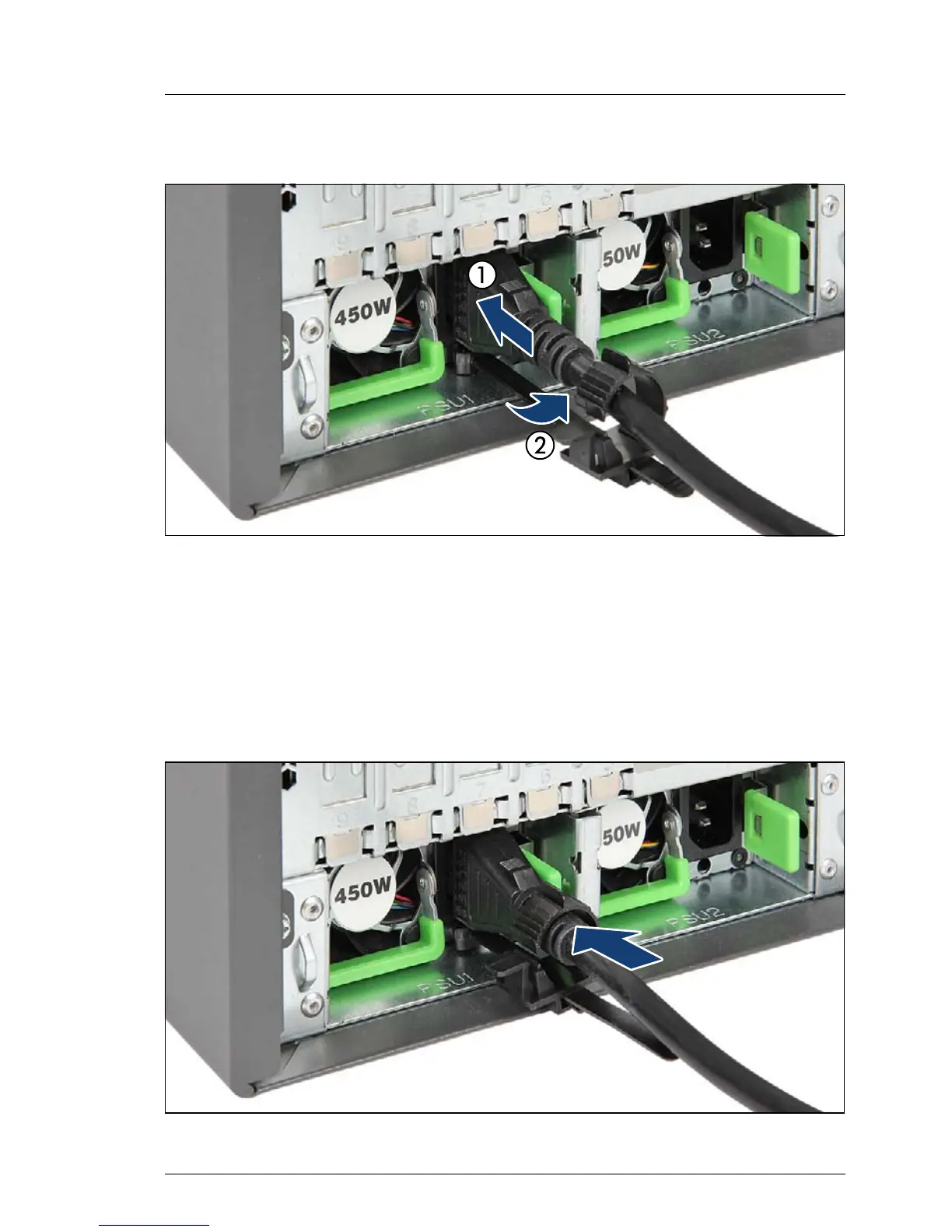

Figure 69: Securing power cords (A)
Ê Connect the power cords to the power supply units (1).
Ê Run the power cord through the PSU cable bracket as shown (2).
Ê Ensure that the PSU indicator on the PSU module lights up green.
I For further information on the PSU operation status, refer to section
"PSU indicator" on page 784.
Figure 70: Securing power cords (B)
