Fujitsu PRIMERGY RX350 S8

120 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Basic hardware procedures

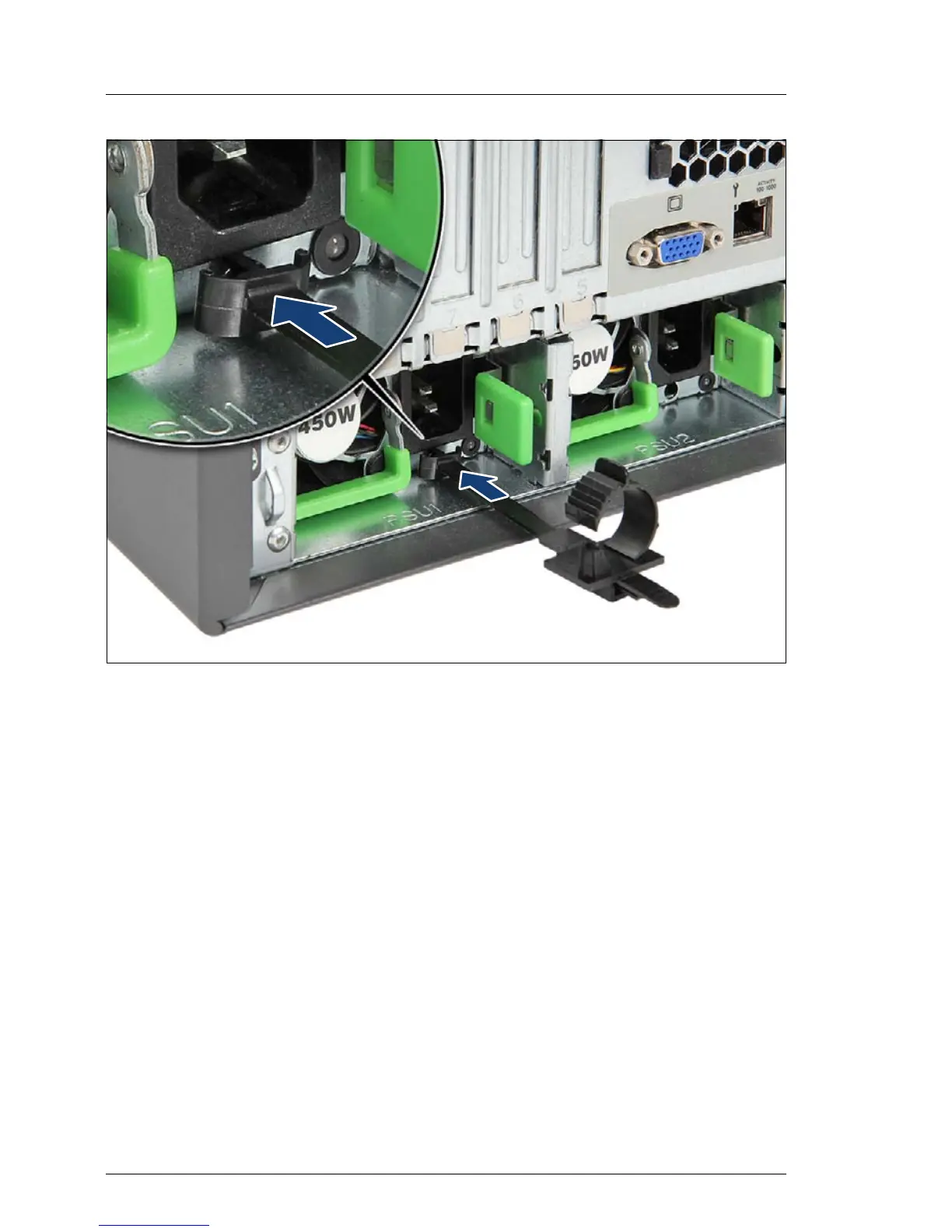

Figure 68: Mounting the PSU cable bracket (B)
Ê Clip the PSU cable bracket into the mounting hole on the power supply
module as shown (see close-up).
I Once attached, a PSU cable bracket cannot be removed from the
PSU module anymore.
Ê Proceed as described in section "Securing a power cord in the PSU cable
bracket" on page 121.
