Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 119
Basic hardware procedures
Ê Press down on the locking lever on the PSU cable bracket (1) and pull the
loop away from the PSU cable bracket anchorage as far as it will go (2).

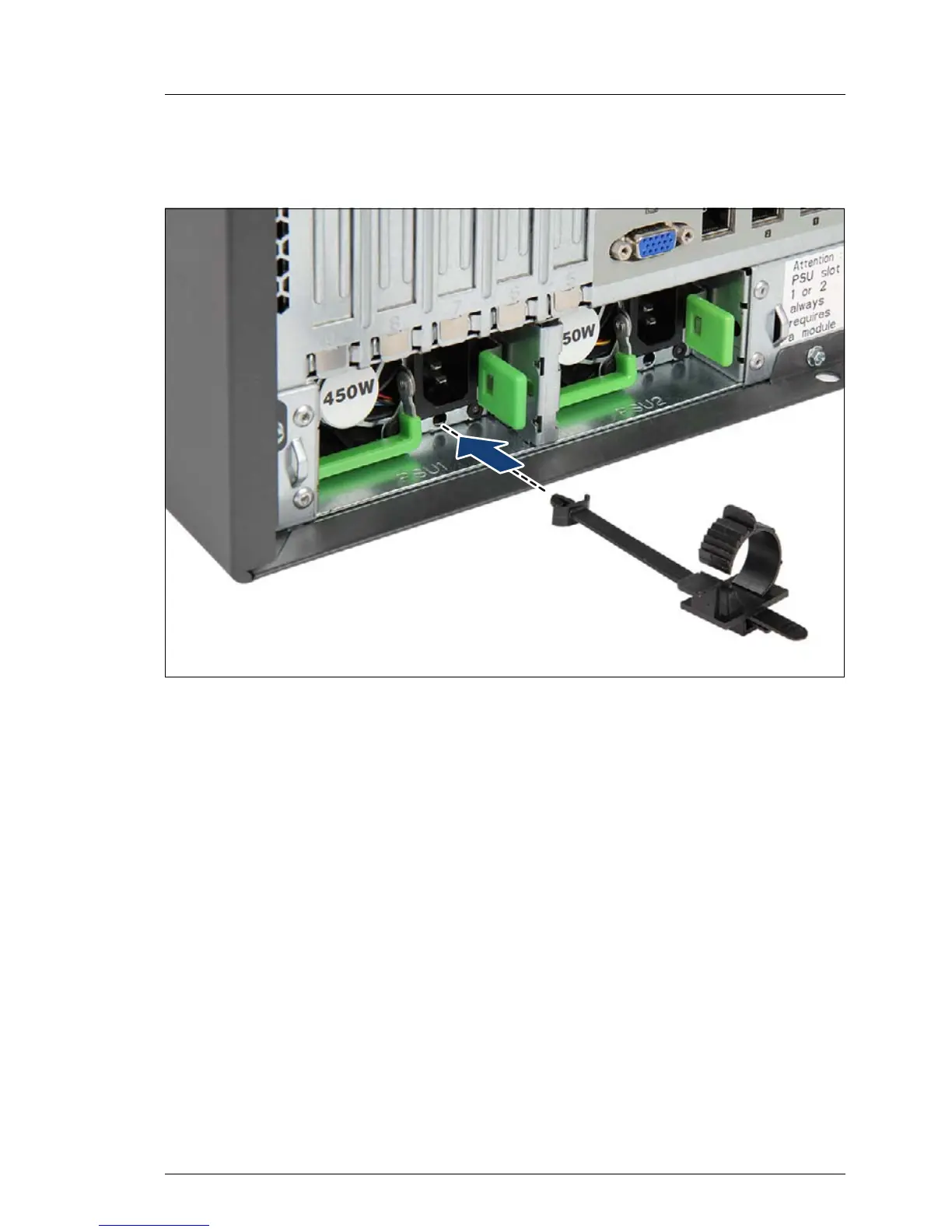

Figure 67: Mounting the PSU cable bracket (A)
Ê Locate the mounting hole on the power supply module.
