Fujitsu PRIMERGY RX350 S8

198 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Hard disk drives / solid state drives
7.2.5 24x 2.5-inch HDDs / SSDs (6 SAS backplanes)
7.2.5.1 Mounting order for 2.5-inch SAS 2.0 HDDs / SSDs

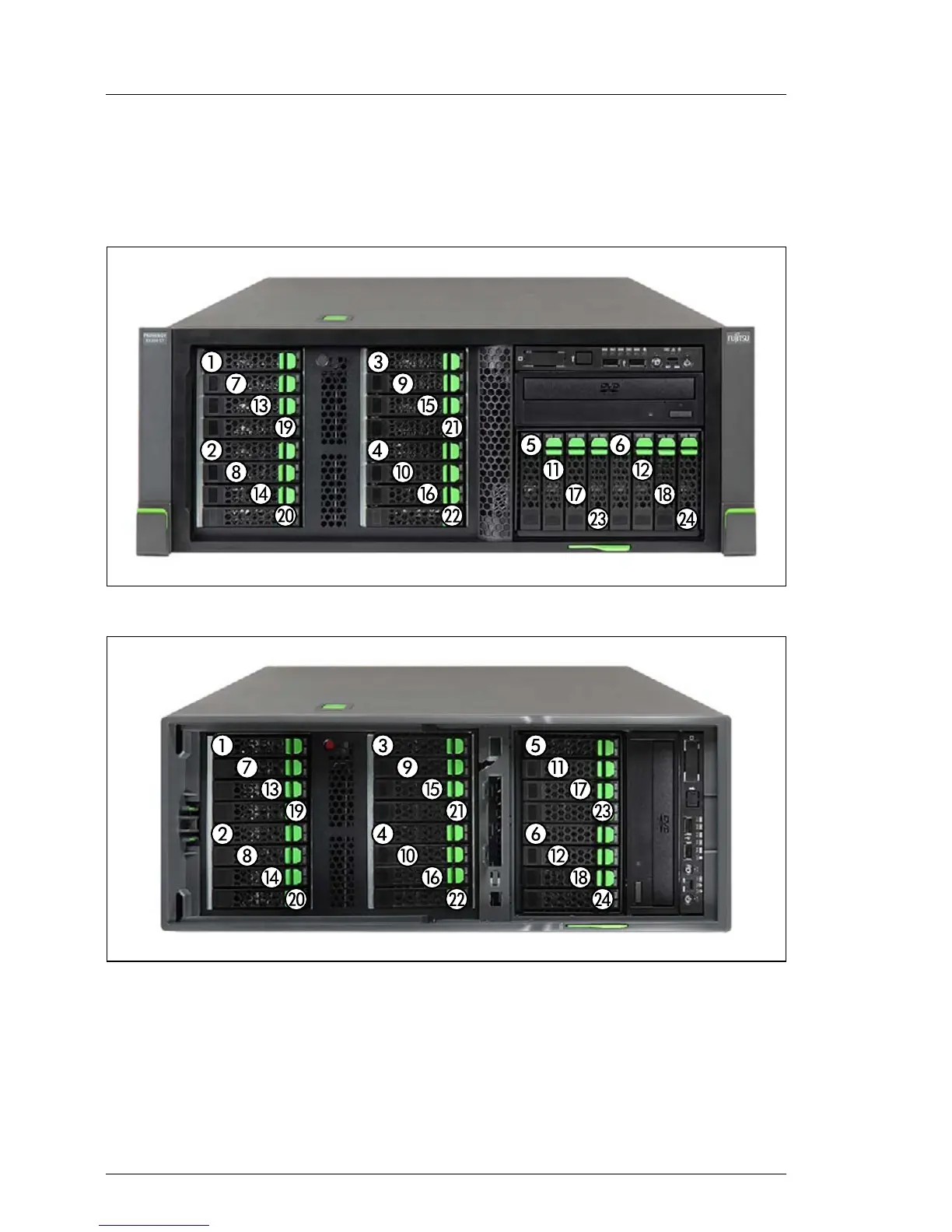

Figure 102: Mounting order: up to 24x 2.5-inch SAS 2.0 HDDs / SSDs (Rack)
Figure 103: Mounting order: up to 24x 2.5-inch SAS 2.0 HDDs / SSDs (Tower)
