4.9.4.2 Installing accessible drive covers

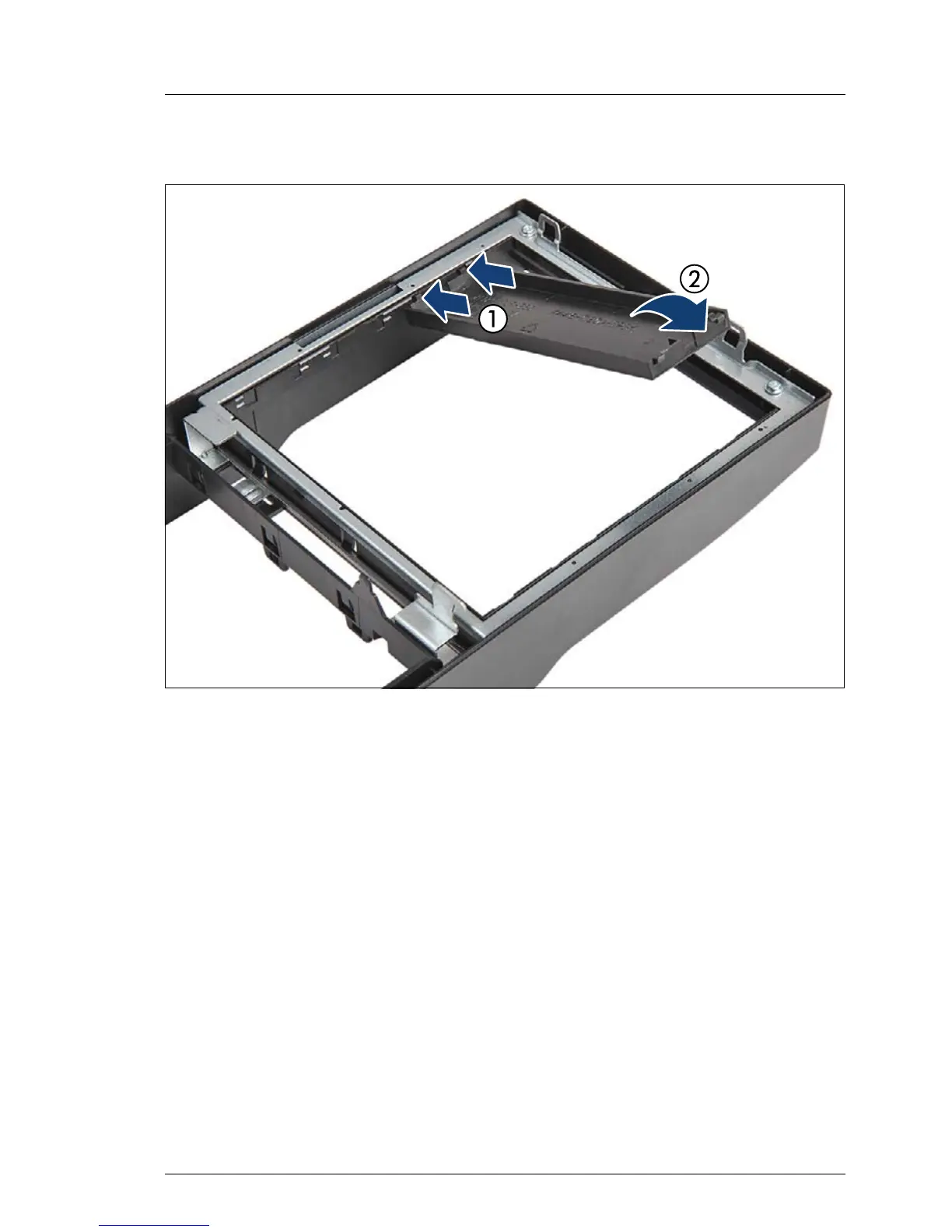

Figure 45: Installing accessible drive covers
I Installing accessible drive covers is illustrated by the example of the
tower server. In case of the rack front cover, the procedure is identical.
Ê Ensure that an accessible drive filler cover has been installed in every empty
drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover (C26361-K644-
C60) with the right inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
