TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 427
Expansion cards and backup units
9.5.2.2 Preparing the SAS RAID controller

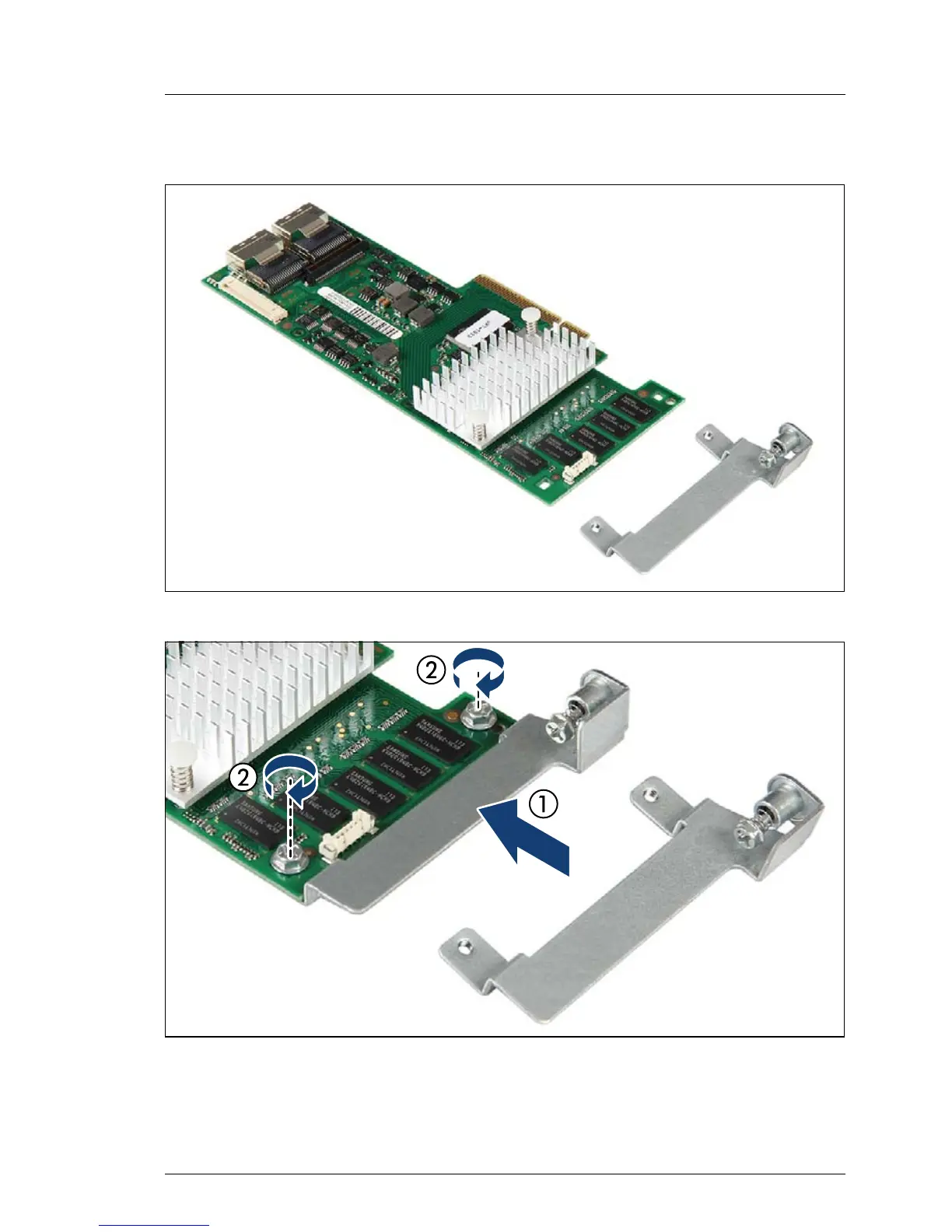

Figure 321: SAS RAID controller with RAID card holder (C26361-K644-B944)
Figure 322: Installing the RAID card holder
Ê Place the controller on the mounting tabs on the slot bracket (1).
Ê Secure the slot bracket to the controller with two M3 x 4.5 mm screws (2).
