Hard disk drives / solid state drives
7.2.10.5 Mounting the 2.5-inch HDD bay top cover

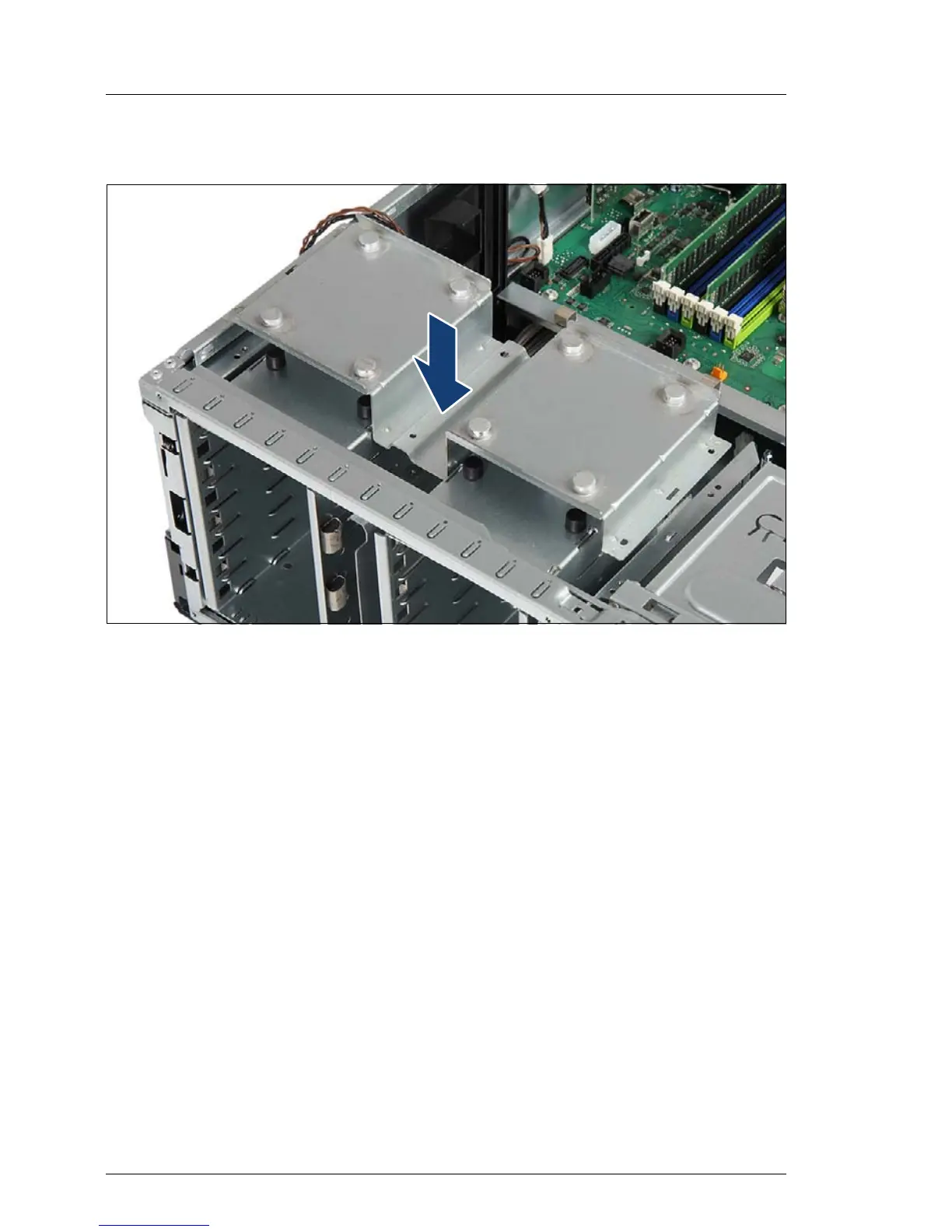

Figure 139: Mounting the 2.5-inch HDD bay top cover (A)
Ê Lower the 2.5-inch HDD bay top cover onto the HDD installation bays.
Ê Ensure that the four rubber bolts on top of the cage properly engage with the
corresponding dents in the HDD bay top cover.
