TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 235
Hard disk drives / solid state drives

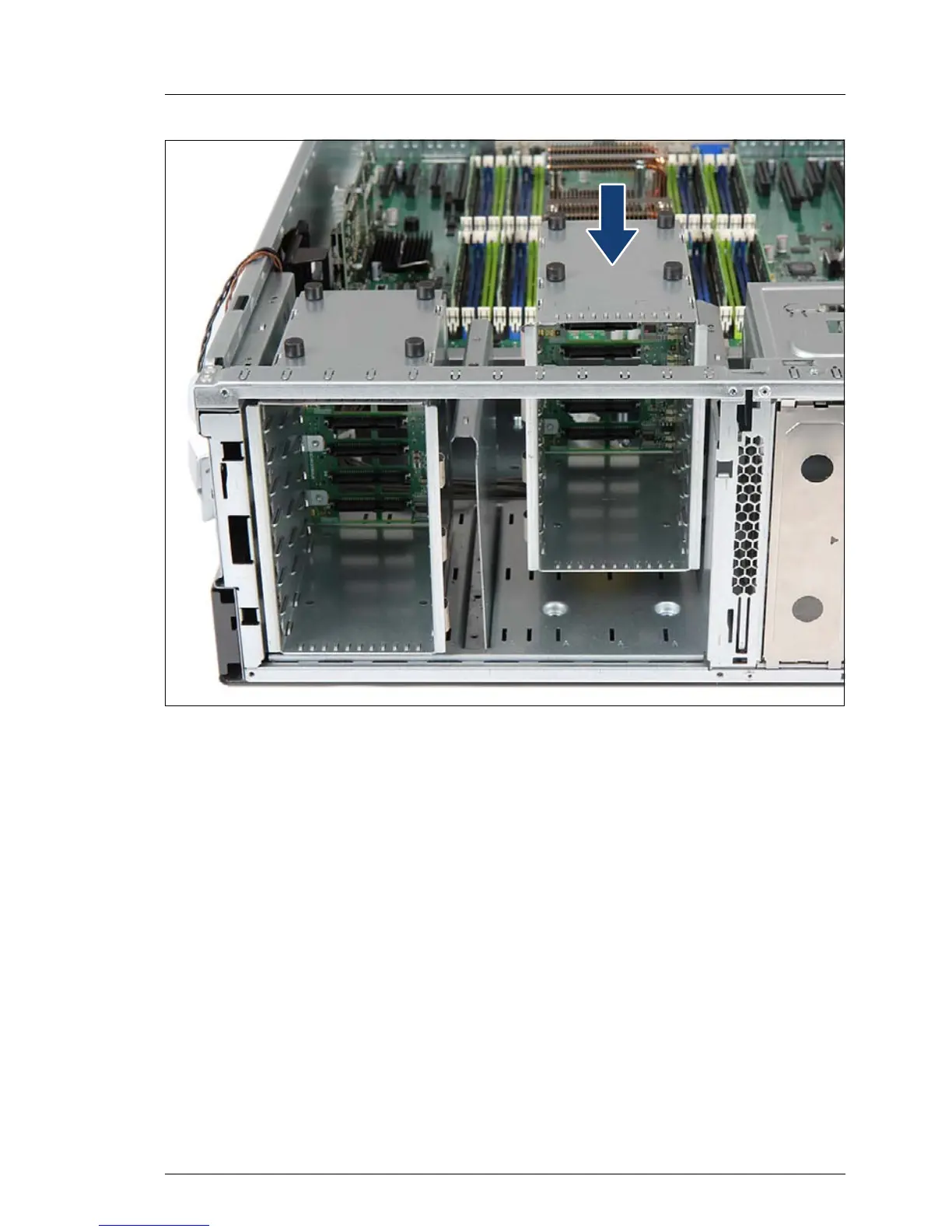

Figure 138: Mounting the second 2.5-inch HDD drive cage (B)
Ê Lower the 2.5-inch HDD cage into the right HDD installation bay as shown.
Ê Ensure that the four rubber bolts on the bottom of the cage properly engage
with the corresponding dents in the chassis floor.
