Ê Remove the slot bracket.
V CAUTION!
Keep the slot bracket for further use.
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
9.3.1.4 Installing the Modular LAN controller
Ê Remove the Modular LAN controller from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the enclosed full height slot bracket to the Modular LAN
controller as described in section "Preparing the Modular LAN controller" on
page 365.

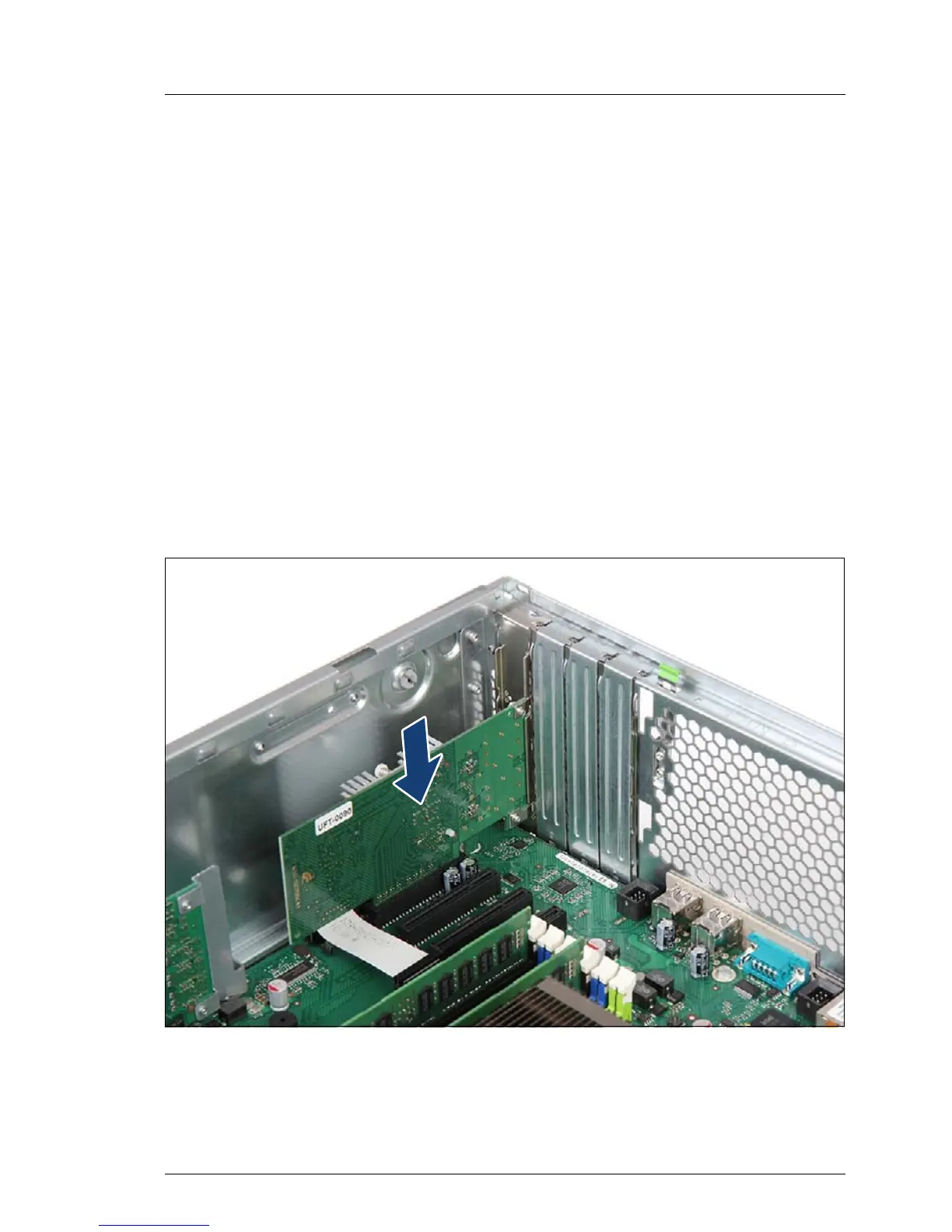

Figure 255: Installing the Modular LAN controller
Ê Carefully insert the Modular LAN controller into PCI slot 1 and press down
firmly until it is fully seated in the slot.
