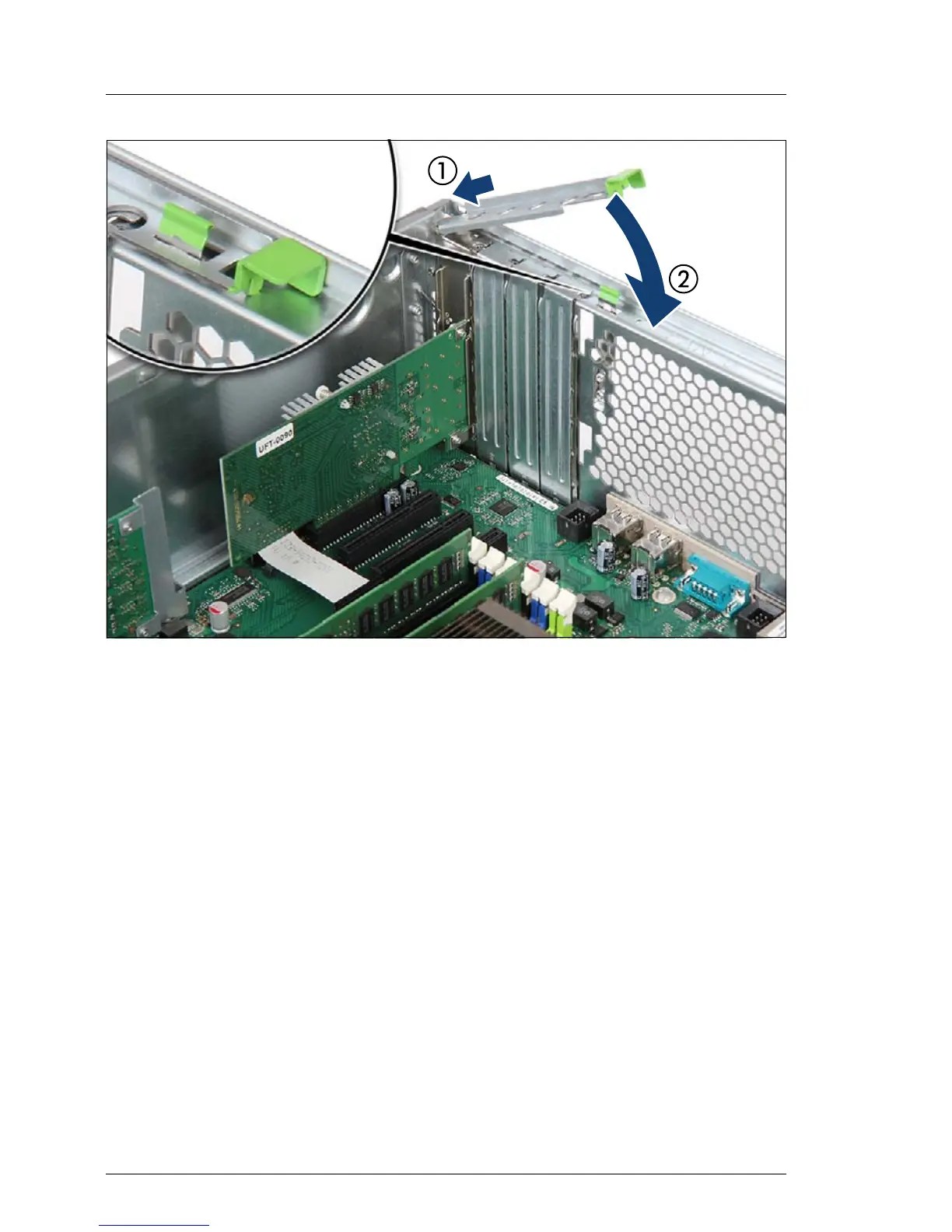

Figure 256: Securing the Modular LAN controller
Ê Insert (1) and close the PCI slot bracket locking bar (2) until the latch locks
in place (see close-up).
Ê If applicable, install SFP+ transceiver modules into the Modular LAN
controller.
Connecting the NCSI sideband cable to the system board
I Connecting the NCSI sideband cable is only necessary in order to use
the Modular LAN controller as a shared LAN interface, that allows both,
management and dedicated LAN connections.
If the Modular LAN controller is to be used for dedicated network
connections only, please skip this section.
