Ê Connect the 8-pin connector on power cable T26139-Y3939-V202 to power
backplane connector X22 (1).
Ê Connect the 4-pin connector X1 to SAS backplane connector X7 (2).
Ê Store the remaining cable end (connector X2) under the 4x 3.5-inch HDD
extension box as shown (3).
7.3.5.3 HDD naming scheme

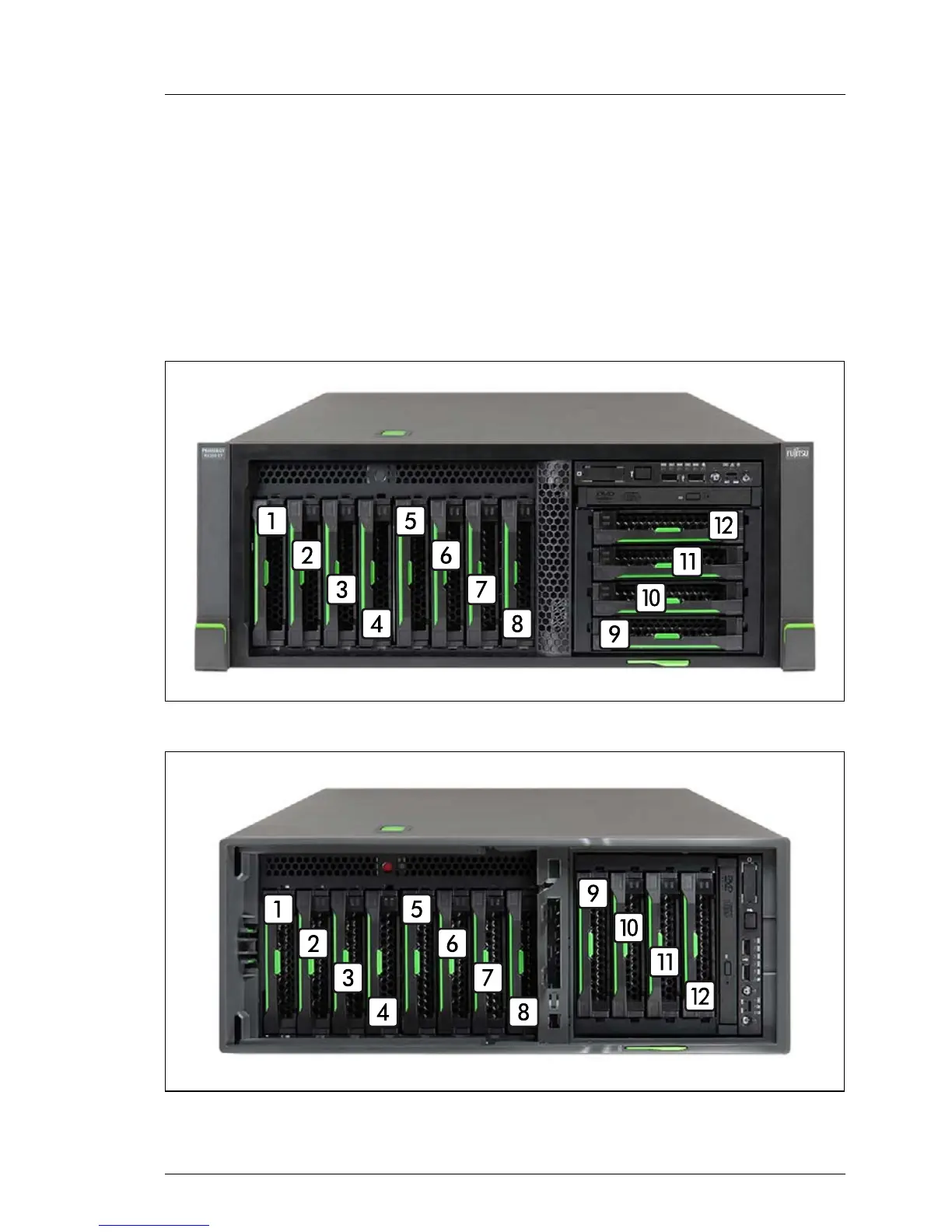

Figure 159: Naming scheme: 12x 3.5-inch HDDs (3 SAS backplanes) (Rack)
Figure 160: Naming scheme: 12x 3.5-inch HDDs (3 SAS backplanes) (Tower)
