12.2.3 Installing an accessible drive
12.2.3.1 Installing an ODD / backup drive

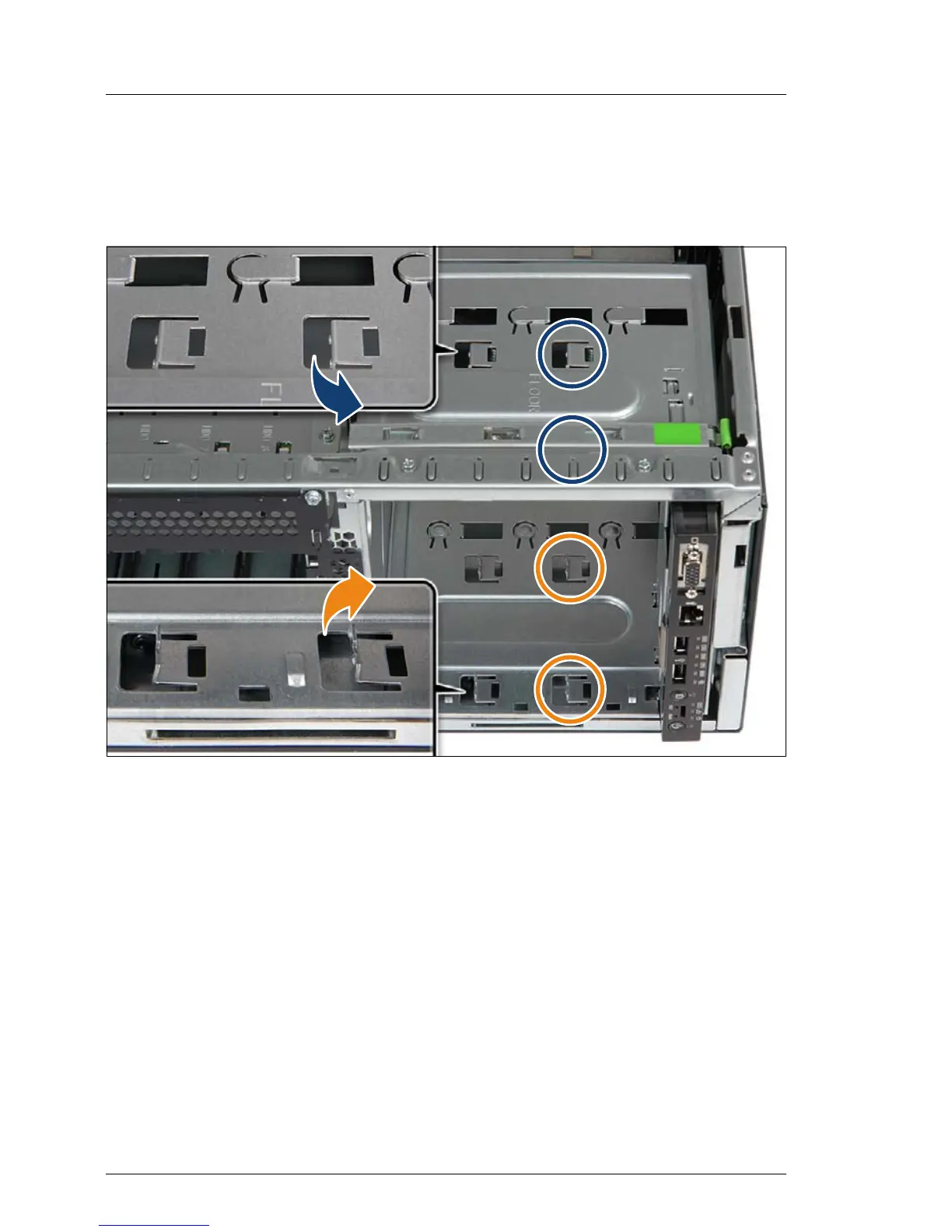

Figure 406: Checking mounting bracket positions (Example: ODD installation, bay 1)
Ê Ensure that the four mounting brackets in the desired accessible drive bay
have not been bent out. If necessary, proceed as follows:
Ê Using a screw driver, bend the mounting brackets of the upper
installation bay inwards, so that their sides are flush with the bay walls
(see close-up).
Ê Bend down the upper two mounting brackets (see blue circles).
Ê Bend up the lower two mounting brackets (see orange circles).
Ê Disengage the accessible drive locking bar as described in section "Opening
the accessible drive locking bar" on page 91.
