Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go.

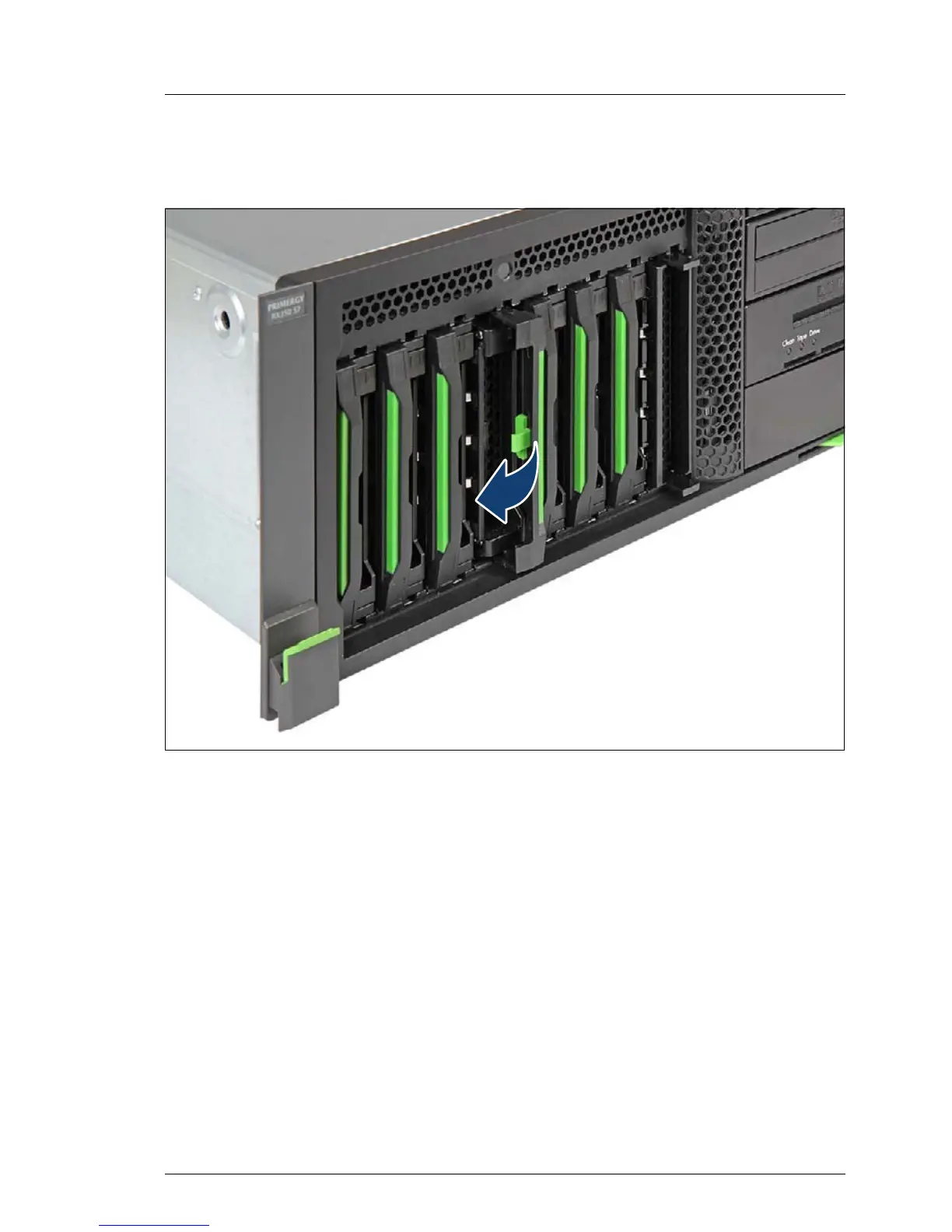

Figure 164: Closing the 3.5-inch HDD module locking lever
Ê Fold down the lever to lock the HDD module in place.
7.3.6.4 Concluding steps
Ê When working on a tower server, close the HDD bay cover as described in
section "Installing accessible drive and HDD bay covers" on page 105.
Ê Please observe the notes on RAID rebuild in section "Performing a RAID
array rebuild" on page 153.
