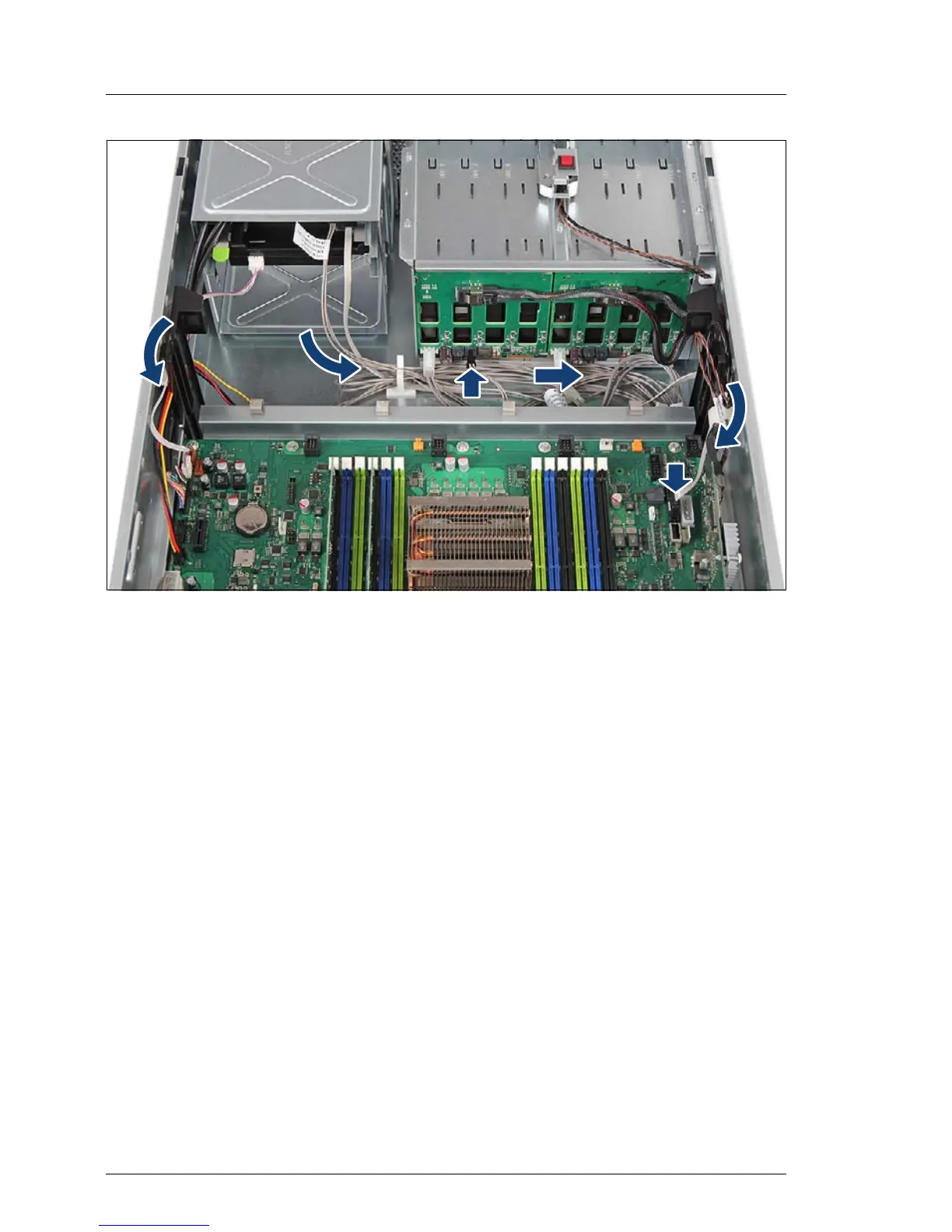

Figure 429: Routing cables
Ê Run SATA cable T26139-Y3958-V205 along the drive bays and through the
cable clamp on the server floor as shown.
Ê Run the SATA cable through the cable guide.
12.5.1.7 Concluding steps
Ê "Installing the system fan holder" on page 331
Ê "Installing the system air duct" on page 83
Ê "Closing the server" on page 98
Ê When working on a rack-mounted server:
"Mounting the server in the rack" on page 115
Ê "Connecting the server to the mains" on page 118
