Fujitsu PRIMERGY RX350 S8

746 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2.9 SAS cabling with 8x 3.5-inch HDDs and 4x 3.5-inch
HDD extension box

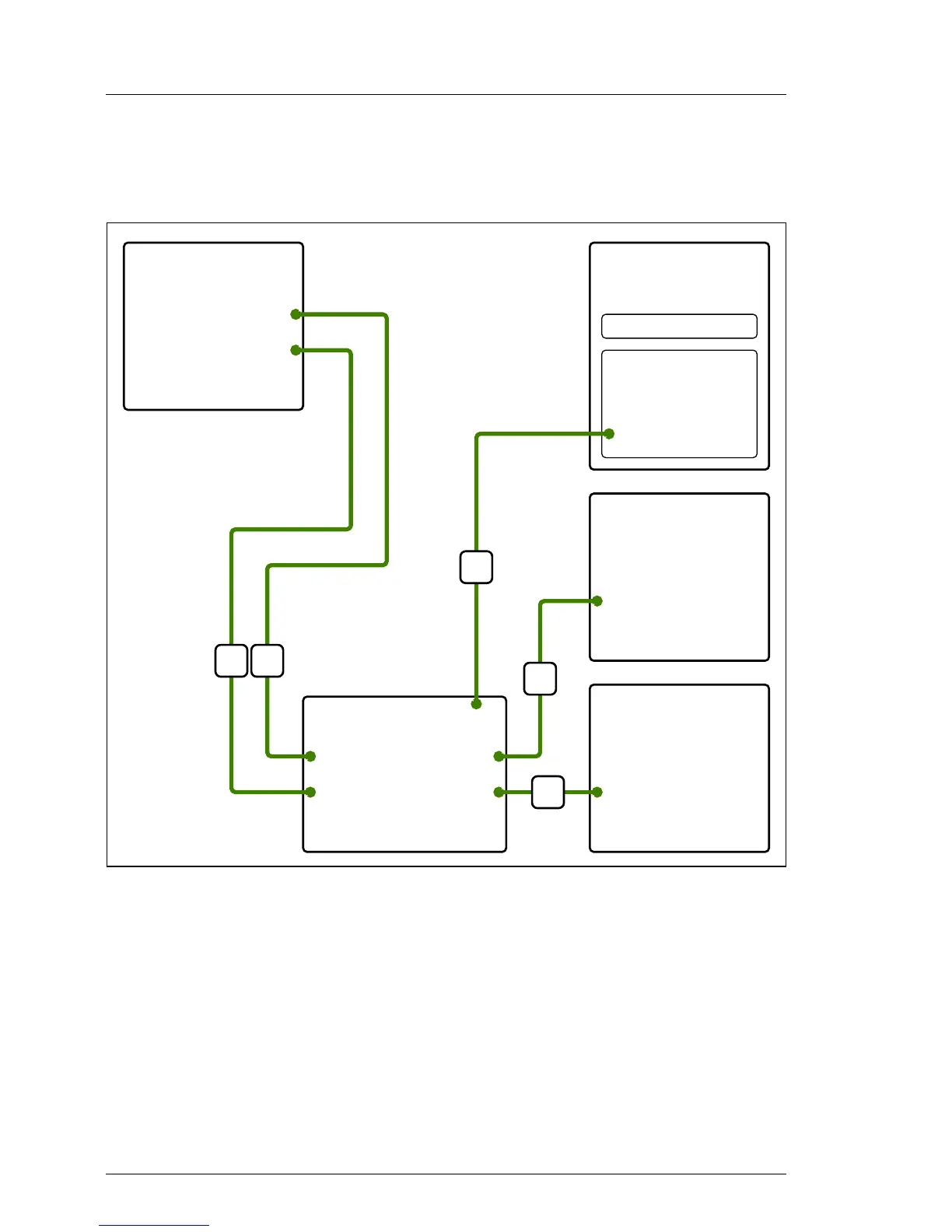

Figure 585: SAS cabling: 8x 3.5" HDDs and 4x 3.5" HDD extension box
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
4x 3.5-inch HDD
Backplane 1
X1
X10
X7
4x 3.5-inch HDD
Backplane 2
X1
X10
X7
Drive Bays 1-3
4x 3.5-inch
HDD Extension Box
HDD Backplane
Slimline ODD
X1
17
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
BBU
16
16
1616
X7
