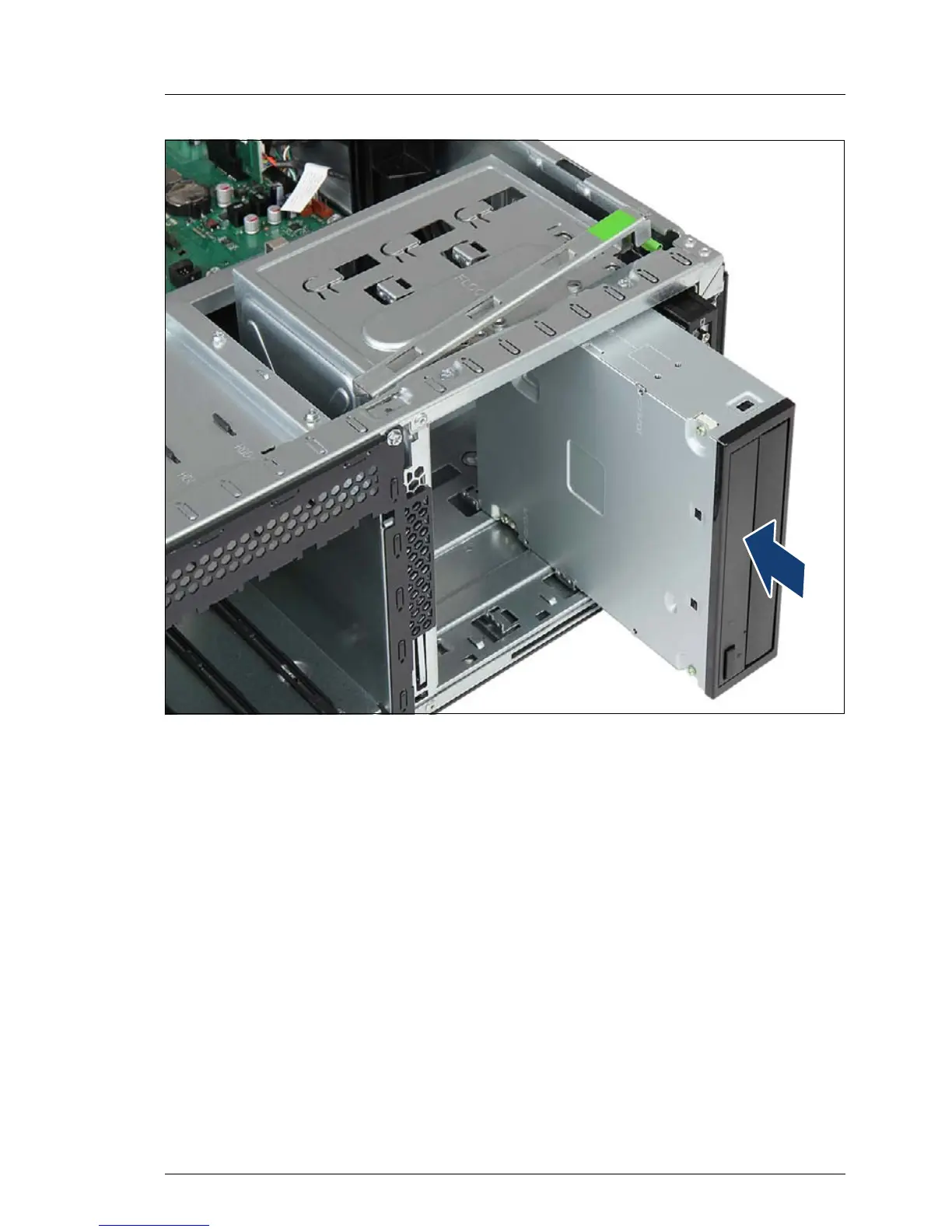

Figure 407: Inserting the accessible drive
Ê Insert the accessible drive into its installation bay and carefully push in until
its front screw hole lines up with the centering pin on the locking bar.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
12.2.3.2 Installing mounting brackets to RDX and DAT72 backup drives
I ● This section does not apply to the Japanese market.
● Replacing mounting brackets may be skipped if no new mounting
brackets are available while replacing a backup drive during service.
● Backup drive mounting brackets are contained in mounting kit
S26361-F3753-E1 (to be ordered separately with the backup drive).
Ê If applicable, remove existing mounting brackets from the backup drive.
