Fujitsu PRIMERGY RX350 S8

536 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Accessible drives

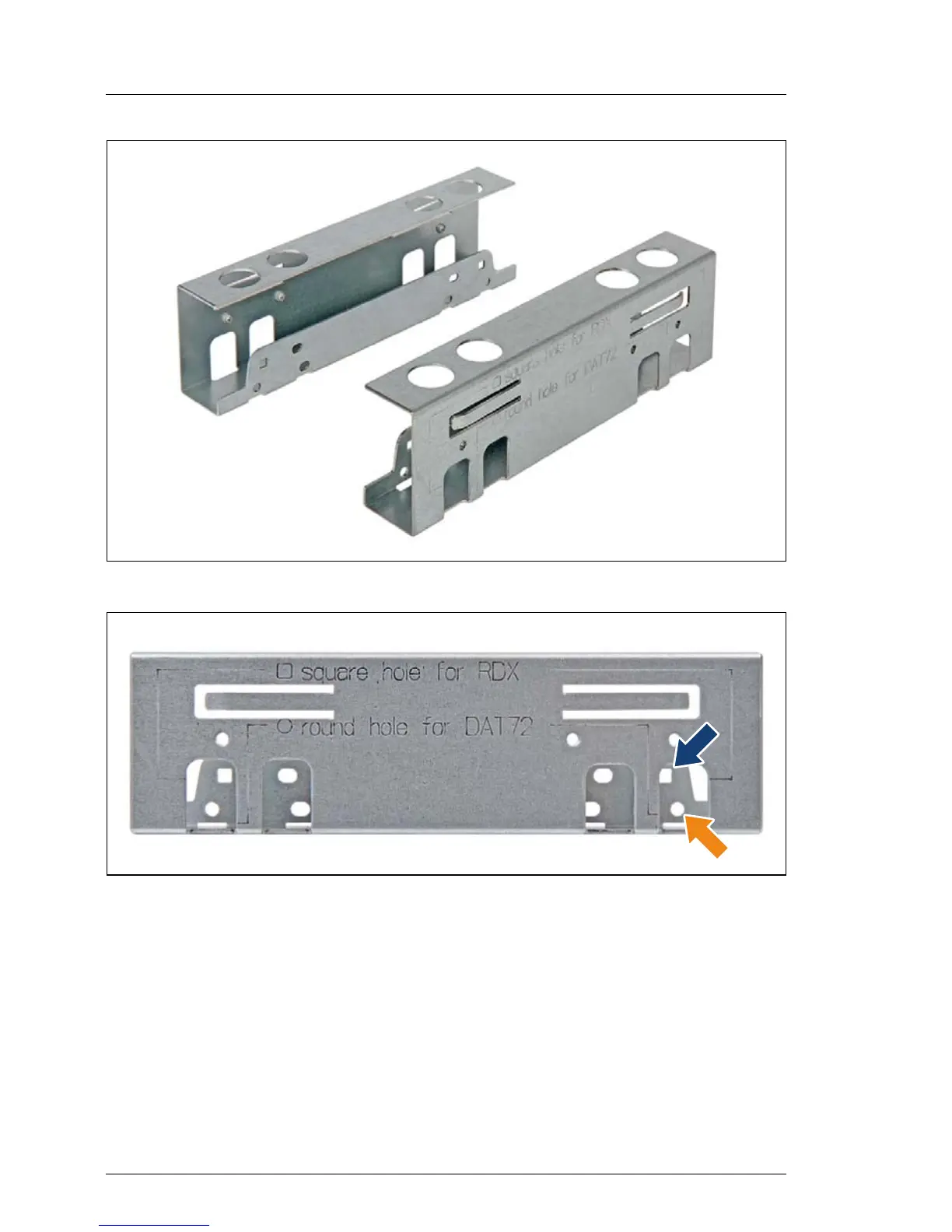

Figure 408: Backup drive mounting brackets
Figure 409: Screw holes on backup drive mounting brackets
Ê Note the screw hole description stamped onto the mounting bracket:
Ê Use the square screw hole for RDX backup drives (see blue arrow).
Ê Use the round screw holes for DAT72 backup drives (see orange arrow).
