Fujitsu PRIMERGY RX350 S8

754 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Cabling
16.2.18 SAS 2.0 cabling with 24x 2.5-inch HDDs / SSDs,
two SAS controllers and SAS expander board

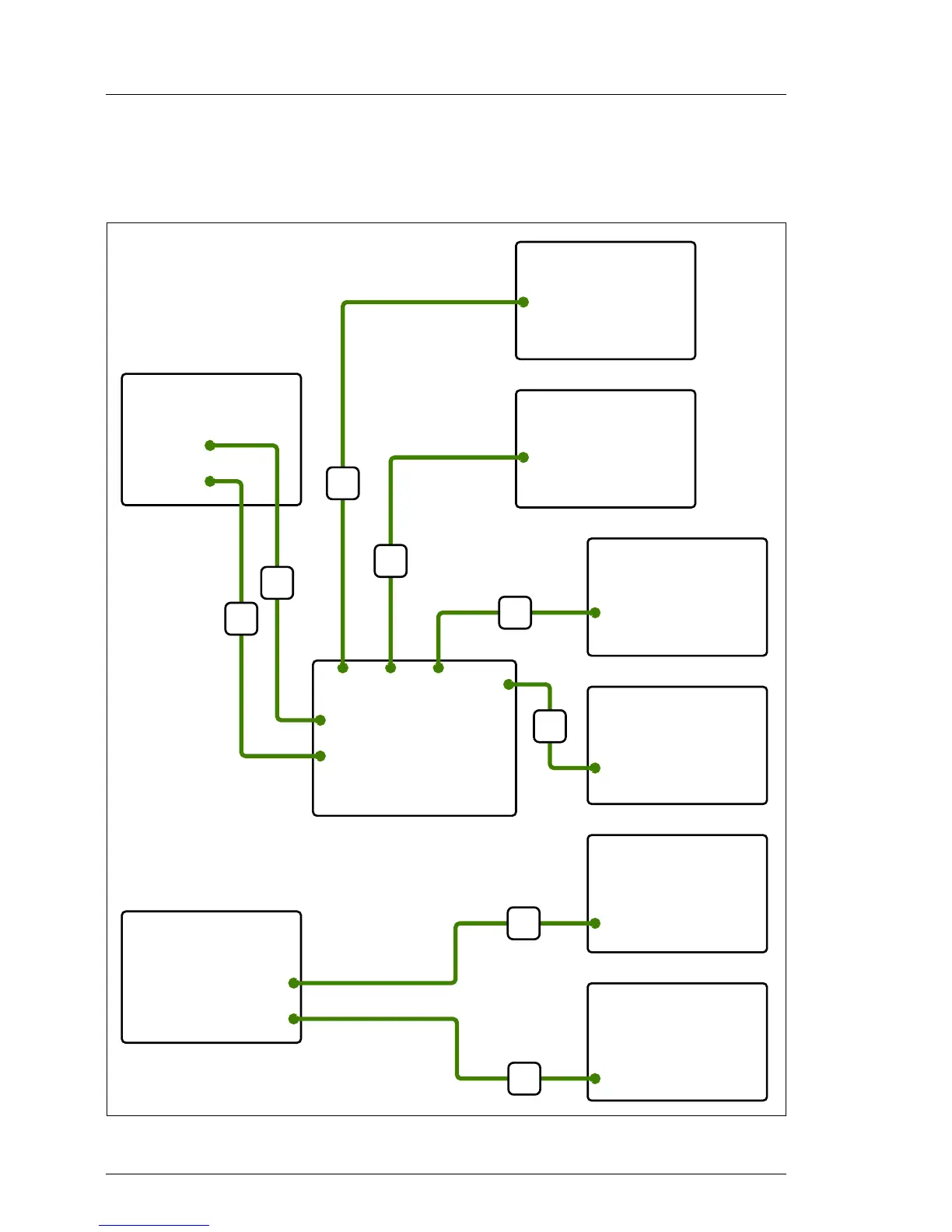

Figure 594: SAS cabling: 24x 2.5" HDDs, 2x SAS 2.0 controllers, SAS expander board
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
SAS Controller 2
(PCI Slot 3)
MLC 1
MLC 2
4x 2.5-inch HDD
Backplane 2
X1
4x 2.5-inch HDD
Backplane 1
X1
4x 2.5-inch HDD
Backplane 4
X1
4x 2.5-inch HDD
Backplane 3
X1
16
16
15
4x 2.5-inch HDD
Backplane 6
X1
4x 2.5-inch HDD
Backplane 5
X1
16
16
18
18
15
