Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 753
Cabling
16.2.17 SAS 2.0 cabling with 16x 2.5-inch HDDs / SSDs,
one SAS controller and SAS expander board

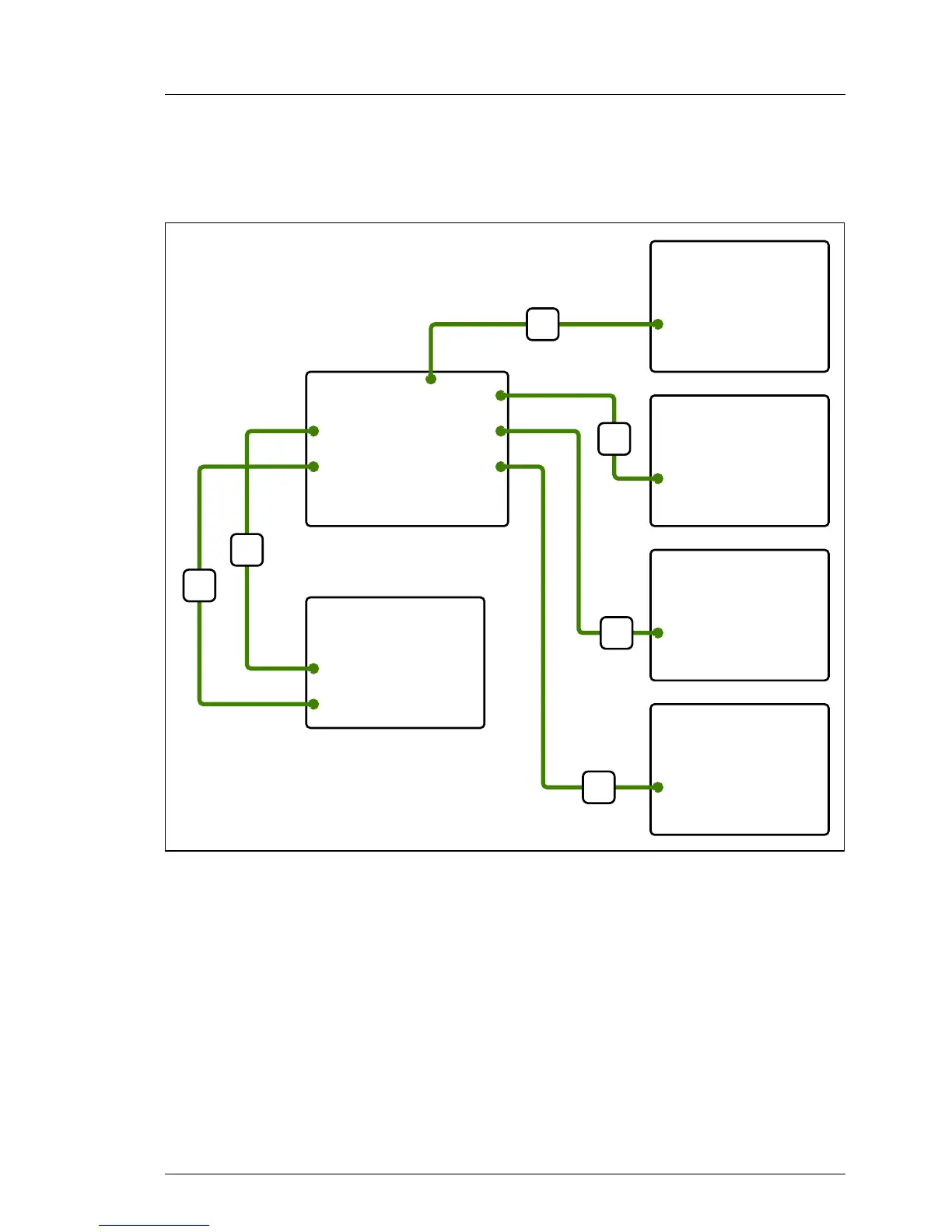

Figure 593: SAS cabling: 16x 2.5" HDDs / SSDs, 1x SAS controller, SAS expander board
4x 2.5-inch HDD
Backplane 3
SAS Expander Board
X6 X4X5 X3
X2
X1
MLC 2
MLC 1
16
4x 2.5-inch HDD
Backplane 2
X1
4x 2.5-inch HDD
Backplane 1
X1
4x 2.5-inch HDD
Backplane 4
X1
X1
15
15
16
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
16
16
