I This cabling plan applies to SAS 3.0 RAID controller D3216
(PRAID EP400i / EP420i).
16.2.15 SAS 2.0 cabling with 16x 2.5-inch HDDs / SSDs and
two SAS controllers

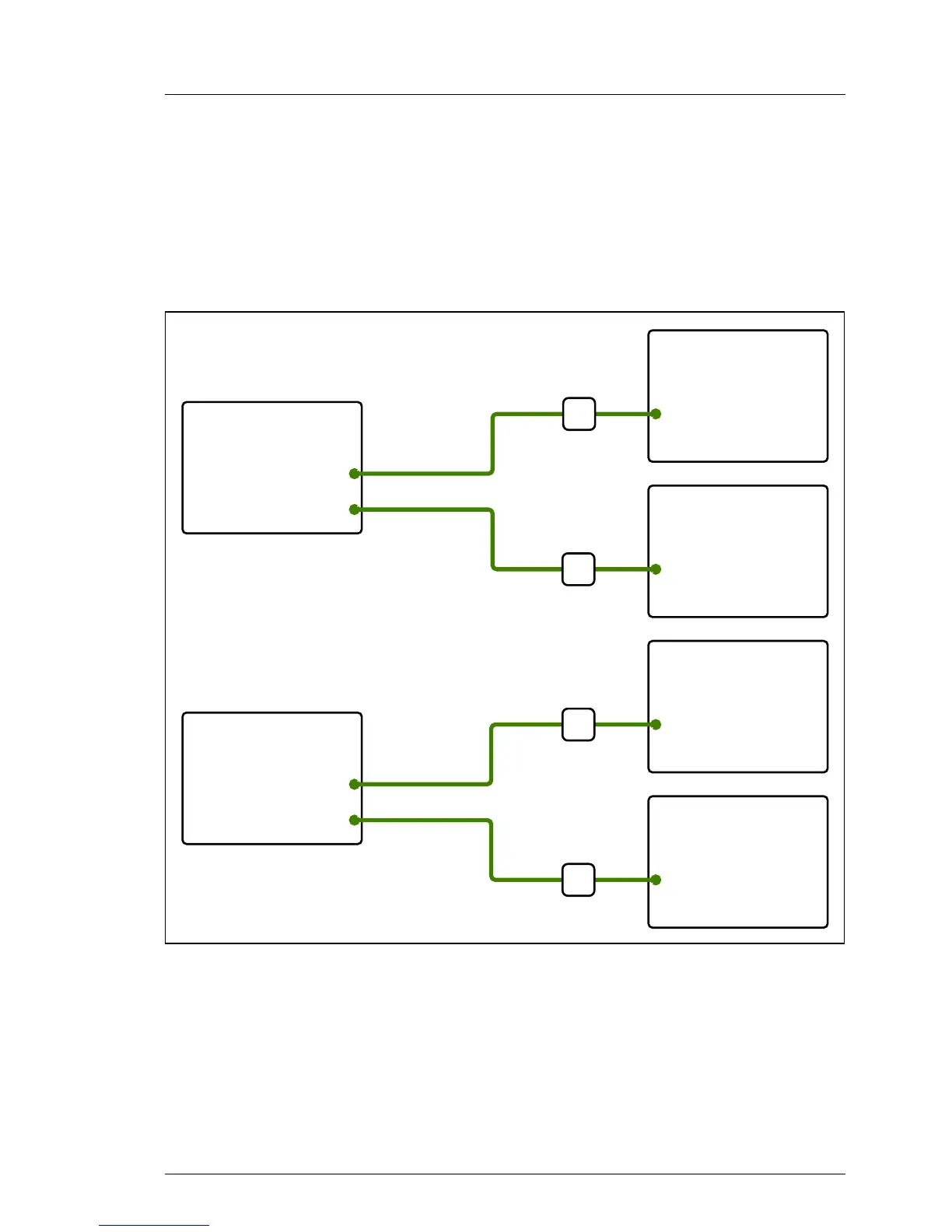

Figure 591: SAS cabling: 16x 2.5" SAS HDDs, 2x SAS 2.0 controllers
SAS Controller 1
(PCI Slot 10)
MLC 1
MLC 2
4x 2.5-inch HDD
Backplane 2
X1
4x 2.5-inch HDD
Backplane 1
X1
16
16
SAS Controller 2
(PCI Slot 3)
MLC 1
MLC 2
4x 2.5-inch HDD
Backplane 4
X1
4x 2.5-inch HDD
Backplane 3
X1
18
18
