Ê If applicable, reinstall all hard disk drives and HDD dummy modules into
their original slots in the HDD extension box as described in the following
sections:
– "Installing 2.5-inch HDD / SSD modules" on page 207
– "Installing a 2.5-inch HDD / SSD dummy module" on page 213
– "Installing 3.5-inch HDD modules" on page 254
– "Installing a 3.5-inch HDD dummy module" on page 261
Ê Reinstall all accessible drive filler covers and front covers as described in
section "Installing accessible drive dummy covers" on page 548.
15.9 Assembling the rack front cover

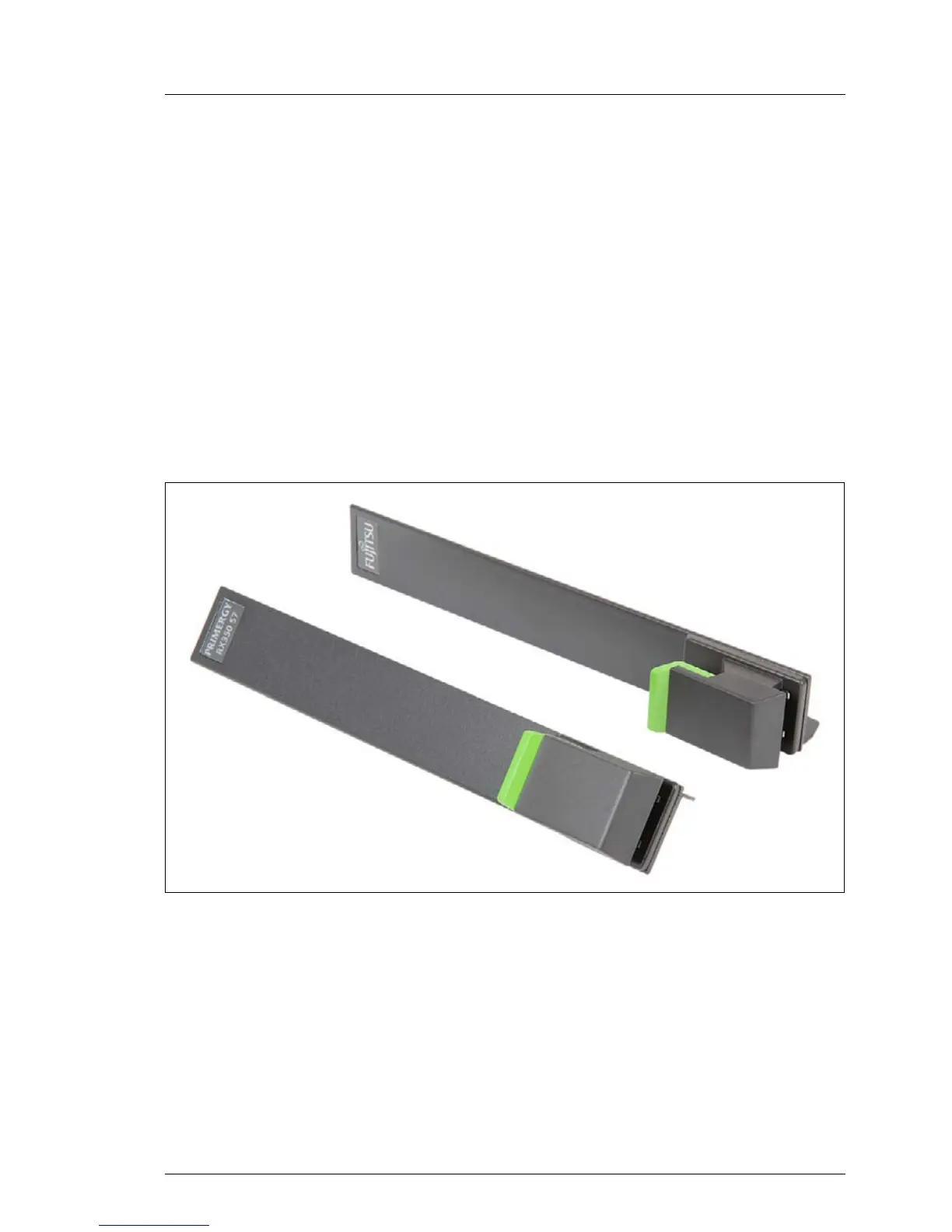

Figure 572: Rack mounting brackets with quick release levers
I The rack front cover consists of a plastic frame and two rack mounting
brackets with quick release levers.
