Fujitsu PRIMERGY RX350 S8

730 Upgrade and Maintenance Manual TX300 S8 / RX350 S8
Converting a tower server to a rack server

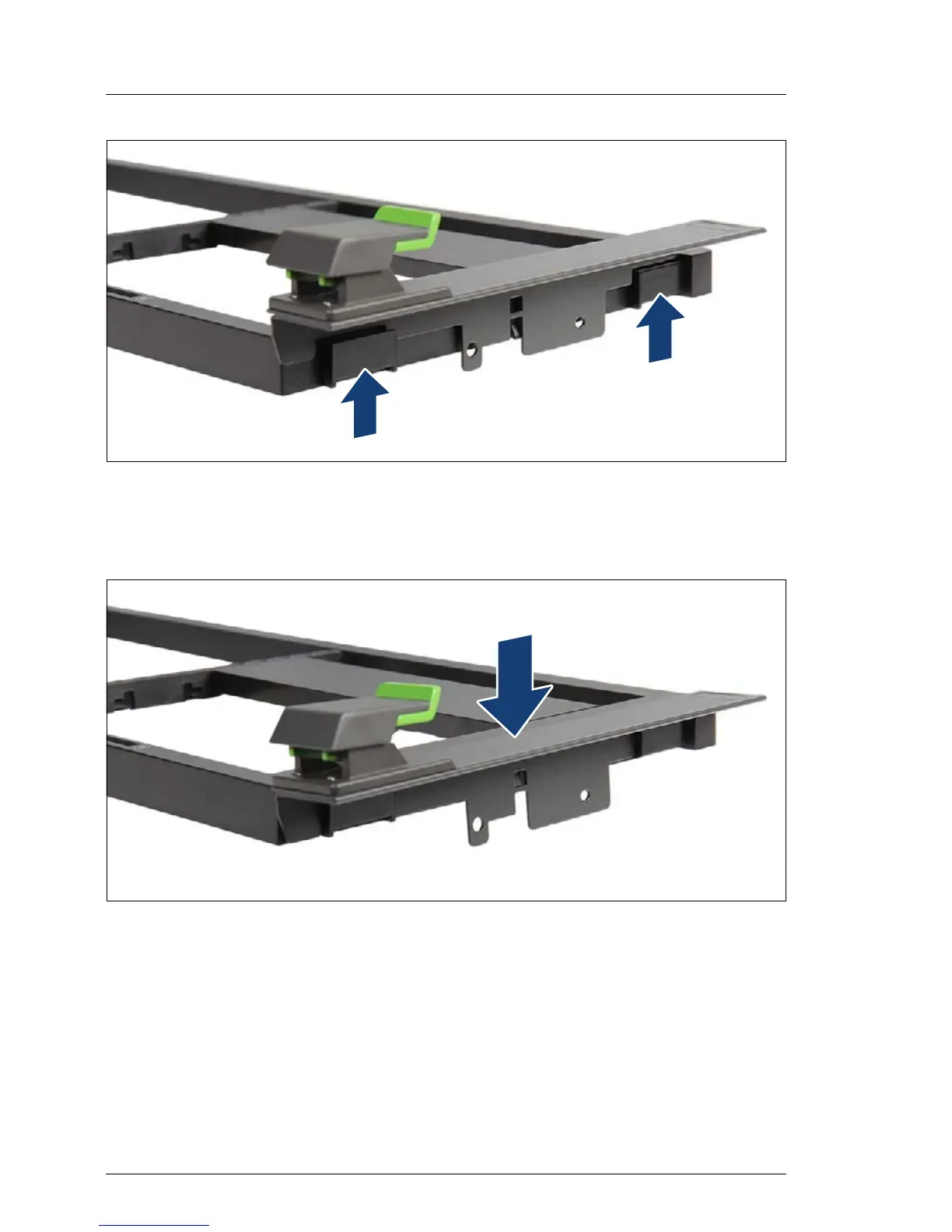

Figure 573: Installing rack mounting brackets (A)
Ê Fit the rack mounting bracket on the two hooks on the rack front bezel (see
arrows).
Figure 574: Installing rack mounting brackets (B)
Ê Firmly press down on the rack mounting bracket until it is fully seated in the
rack front bezel.
Ê Mount the second rack mounting bracket accordingly.
