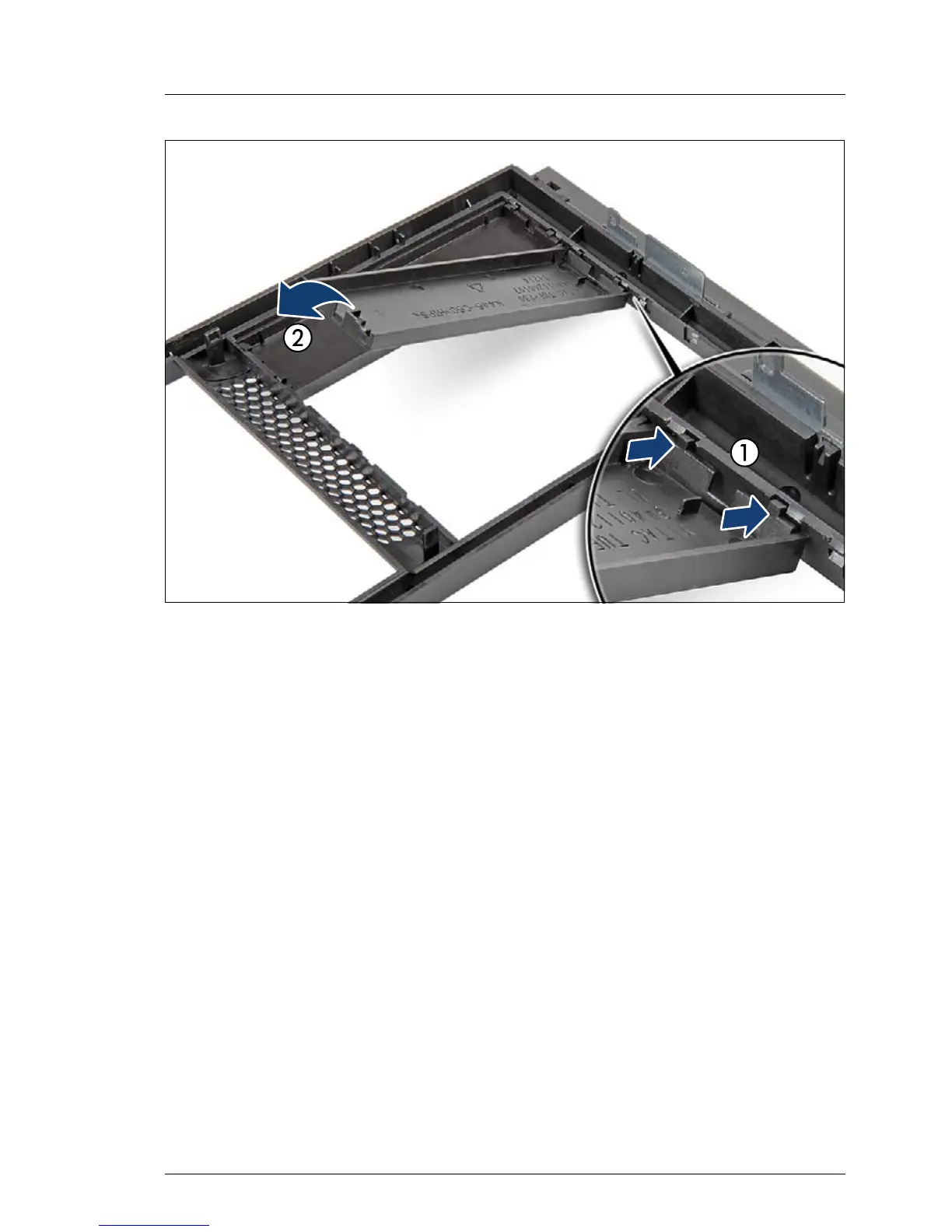

Figure 575: Installing accessible drive dummy covers
Ê Reinstall all accessible drive dummy covers into their original locations
(rotated by 90 degrees):
Ê Ensure that an accessible drive filler cover has been installed in every
empty drive bay.
Ê Turn the front cover face down.
Ê Join the two lugs on one edge of the accessible drive cover (C26361-
K644-C60) with the right inner edge of the front cover (1).
Ê Fold down the accessible drive cover until it snaps in place (2).
I Use the dummy covers that have been removed from the front cover
during the preliminary steps.
