17.1.2 Server rear

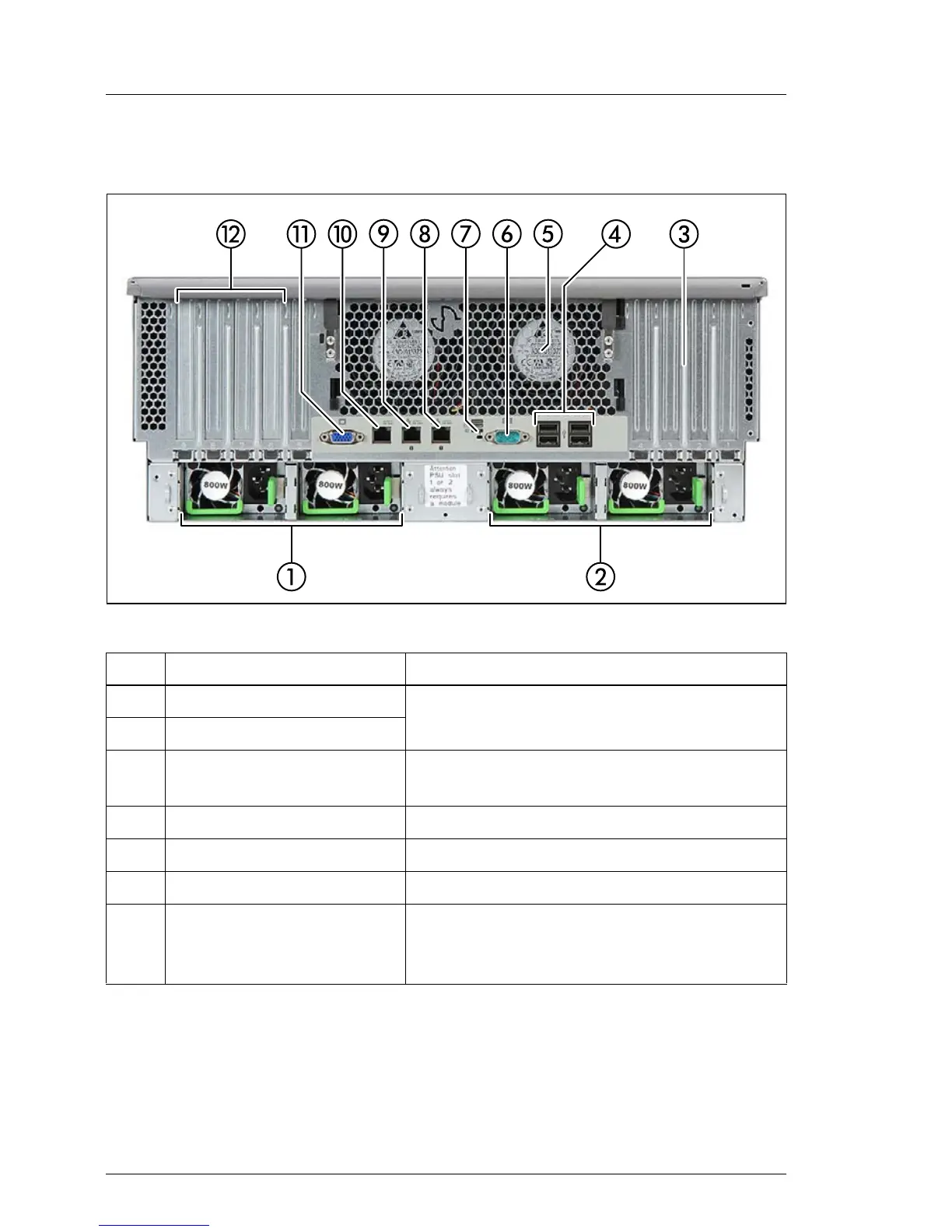

Figure 612: PRIMERGY TX300 S8 / RX350 S8 rear
Pos. Component Reference
1 Power supply units 1-2
"Replacing PSU modules" on page 173
2 Power supply units 3-4
3
Expansion cards
(slots 1-4)
"Replacing expansion cards" on page 361
4 USB connectors 1-4 "I/O panel connectors" on page 781
5 Rear fans (fan 5-6) "Replacing rear fan modules" on page 339
6 Serial connector "I/O panel connectors" on page 781
7
Global Error / CSS /
ID indicators
"I/O panel indicators" on page 782
"Onboard indicators and controls" on
page 779
