Fujitsu PRIMERGY RX350 S8

TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 395
Expansion cards and backup units
9.4.2.7 Installing a GPGPU or coprocessor card

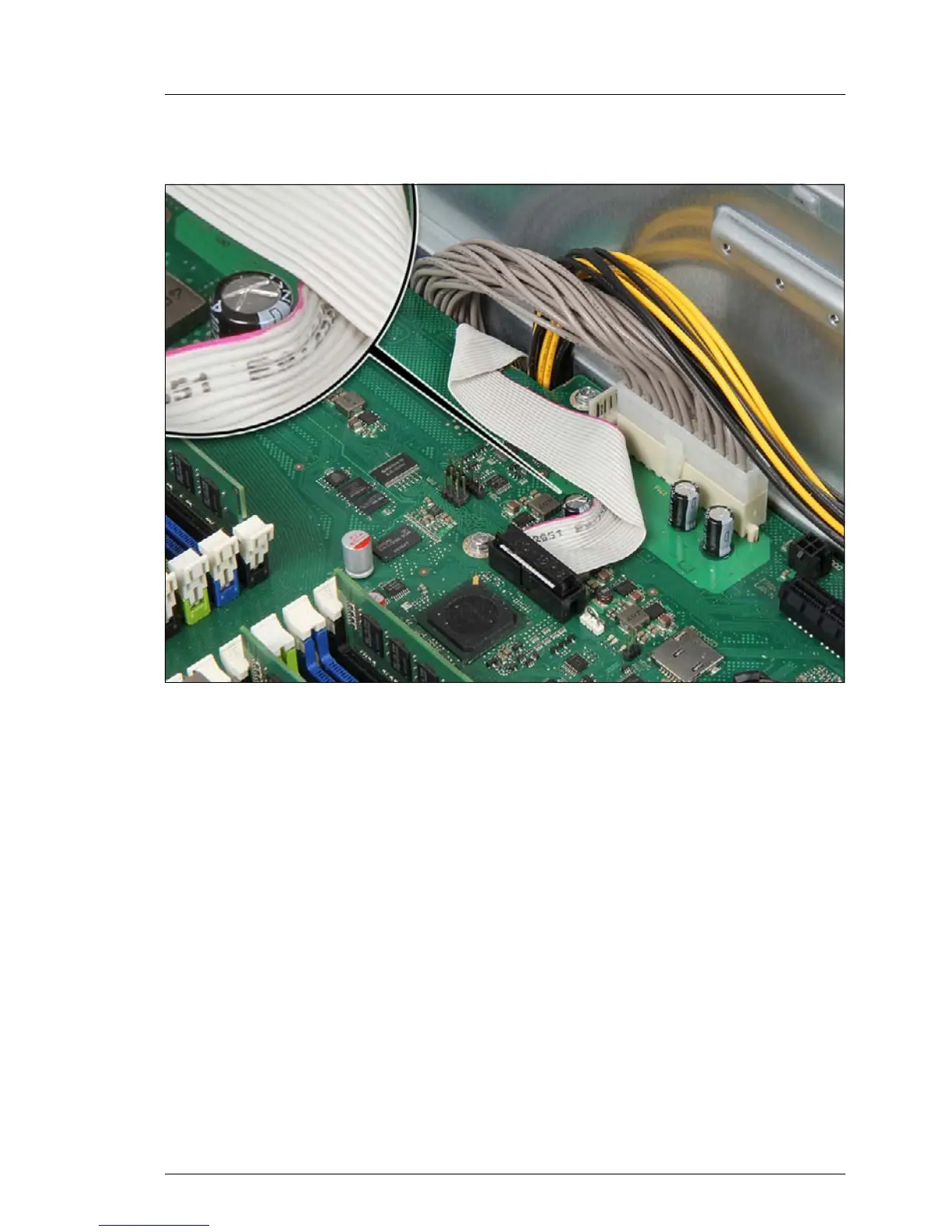

Figure 280: Routing the PSU signal cable
Ê Check the position of PSU signal cable T26139-Y4027-V1.
V CAUTION!
The PSU signal cable must be laid as shown and must not cover the
condenser.
Ê If necessary, correct the cable routing.
Ê Remove the GPGPU / coprocessor card from its protective packaging.
