12.6.2.4 Removing the LSD module from the extension box

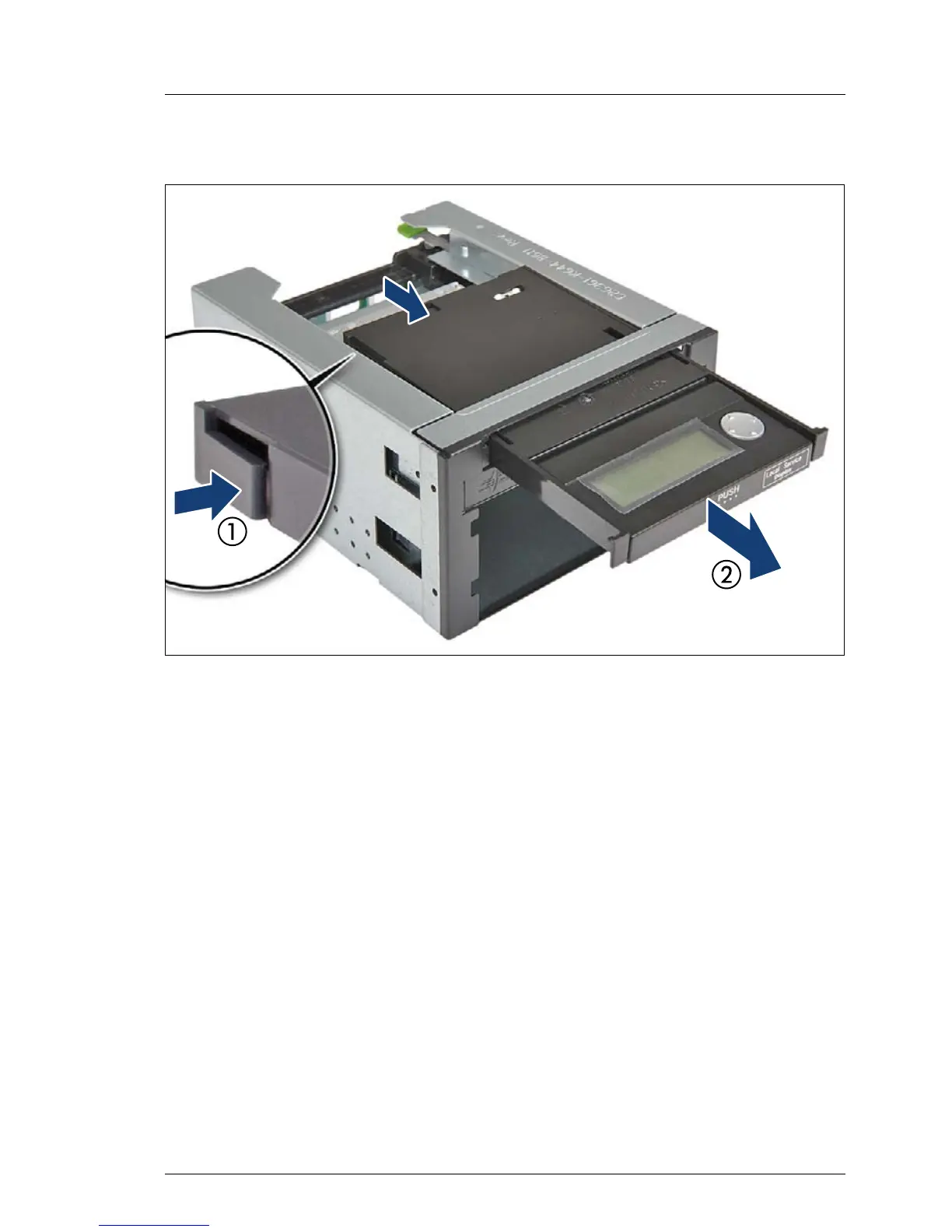

Figure 451: Removing the LSD module
Ê From the rear side of the extension box, press in on the locking latch (see
close-up) to disengage the LSD module (1).
Ê From inside the HDD extension box, press out on the LSD module and pull
it out of its bay (2).
