Ê Fit the slimline ODD dummy insert into the slimline ODD installation frame.
Ê Ensure that the four pins on the frame (see arrows) engage with the side
holes on the dummy insert.

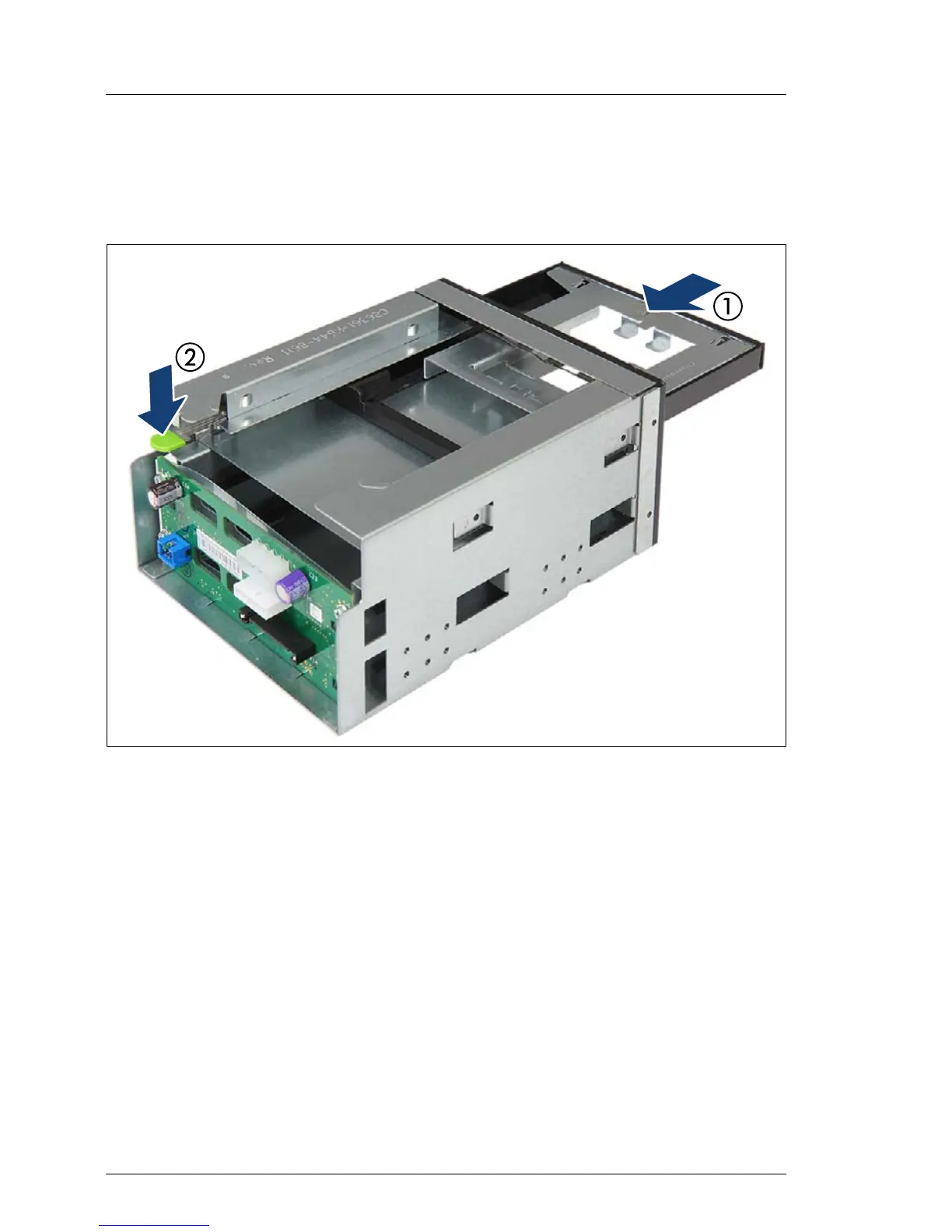

Figure 450: Mounting the slimline ODD module in the HDD expansion box
Ê Insert the slimline ODD dummy module into the HDD extension box (1) and
push back until the locking tab (2) engages.
