TX300 S8 / RX350 S8 Upgrade and Maintenance Manual 581
Accessible drives

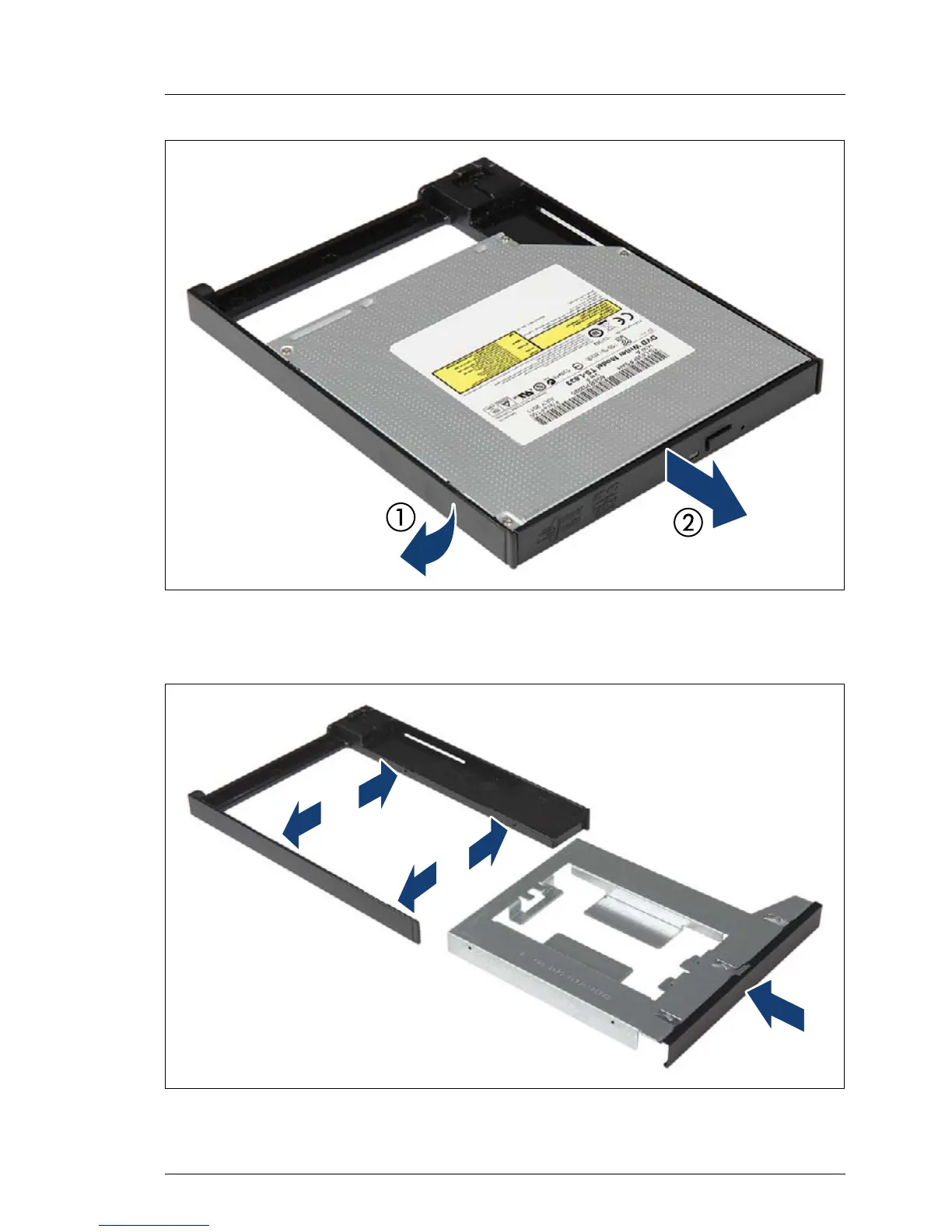

Figure 448: Removing the slimline ODD from its installation frame
Ê Disengage (1) and remove (2) the slimline ODD from its installation frame.
Figure 449: Mounting the slimline ODD dummy insert in the installation frame
