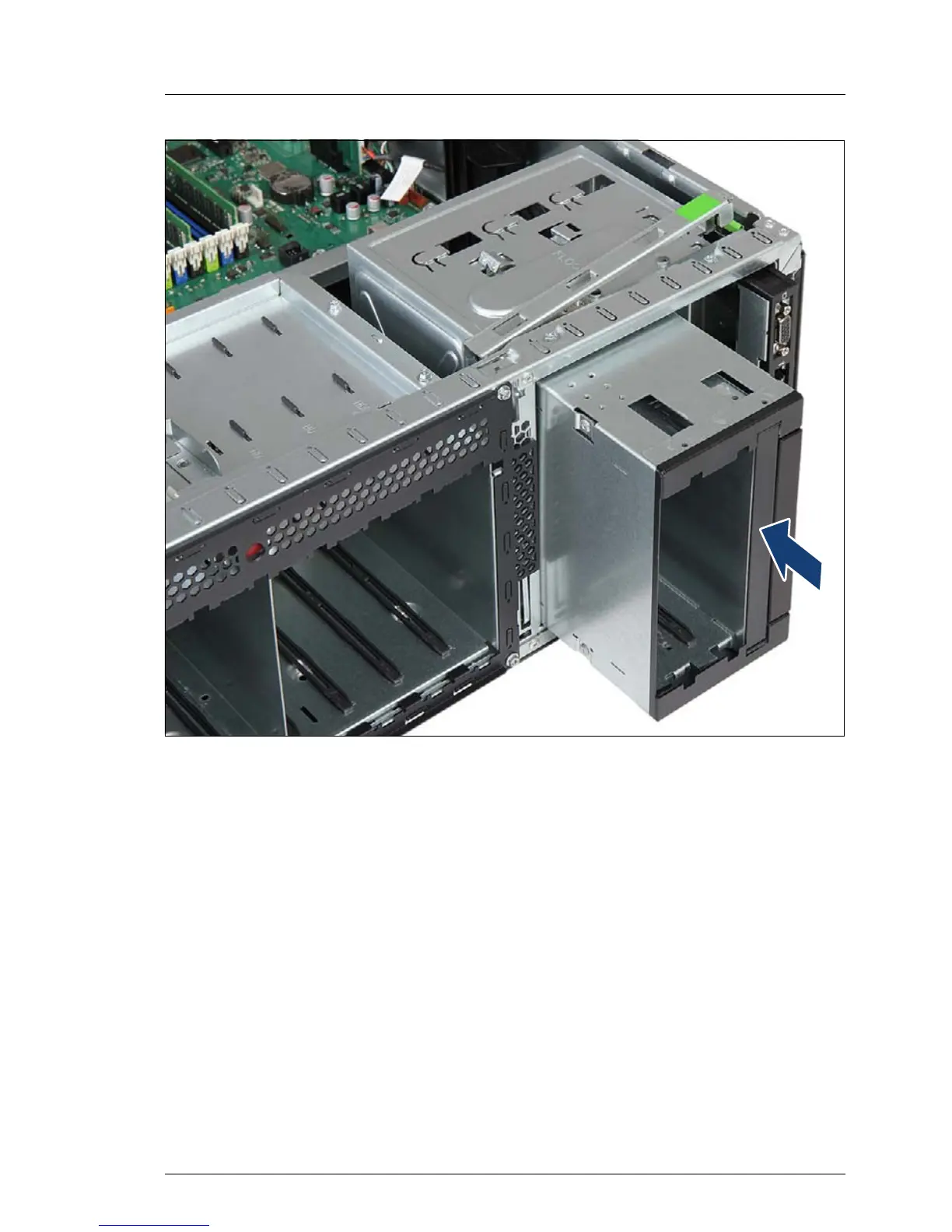

Figure 199: Inserting the 2x 3.5-inch HDD extension box
Ê Insert the 2x 3.5-inch HDD extension box into installation bays 2 and 3 and
carefully push in until its front screw hole lines up with the centering pin on
the locking bar.
Ê Engage the locking bar as described in section "Closing the accessible drive
locking bar" on page 93.
7.4.2.5 Cabling the 2x 3.5-inch HDD extension box
Ê Connect SAS and power cables to the 2x 3.5-inch HDD SAS backplane as
described in section "10x 3.5-inch HDD SAS backplane cabling" on
page 247.
Ê If applicable, connect slimline ODD and LSD module cables as described in
section "Cabling the slimline ODD and LSD" on page 577.
